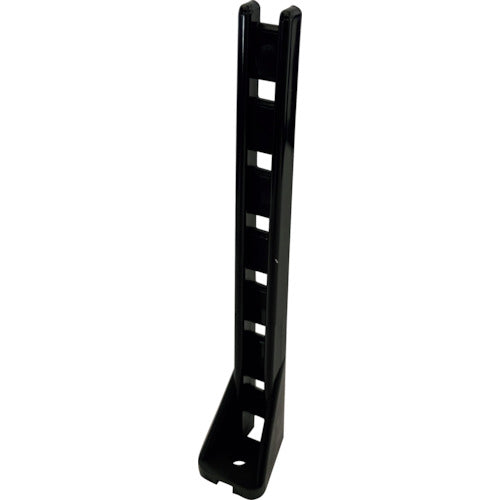

PANDUIT Flat Cable Fixture L-shaped Base (100 pieces) RAFCBI3-S6-C20 1 bag

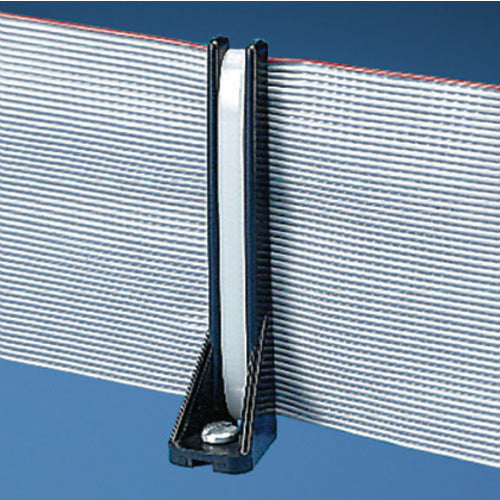

Catalog number: RAFCBI3-S6-C20 Features: ● Can hold and secure flat cables according to their thickness. ● Used with the plate (FCPI3) sold separately. ● Can also be used alone as a stand-type fixture to bind and hold bundles of wires. Applications: ● Fixing and holding flat cables. Specifications: ● Color: Black ● Height (mm): 44.4 ● Cable tie width (mm): 3.6 ● Fixing method: M3 screw ● A (mm): 96.8 ● Dimensions (mm) B: 3.2 ● C (mm): 3.2 ● D (mm): 9.7 ● E (mm): 15.9 ● F (mm): 19.1 ● G (mm): 12.7 ● Maximum flat cable width (mm): 76.2 ● B (mm): 3.2 ● For indoor use ● Operating temperature range: -60 to 85°C ● Cable tie width for fixing: 3.6mm Material/Finish: ● Nylon 66
