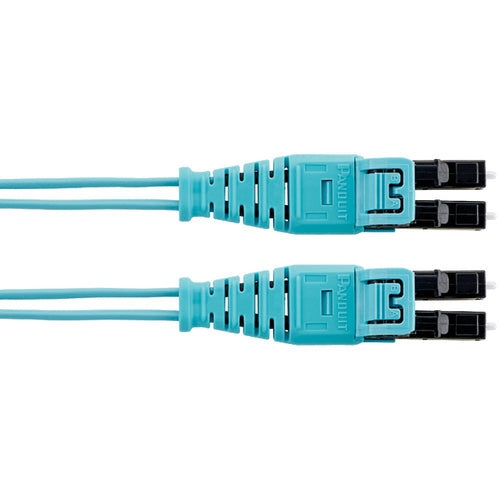

PANDUIT Push-pull LC duplex fiber optic patch cord riser OM3 2m 1 piece FX2ERQ1Q1SNM002 1 piece

Catalog number: FX2ERQ1Q1SNM002 Features: ●The polarity can be changed by removing the clip. ●Simple design with integrated boot. ●In the field of high-density LC patches, it can be easily inserted and removed by simply pinching the boot part. (The cable cannot be removed by simply pulling it.) Applications: ●For optical fiber communications. Specifications: Type: OM3 Number of cores: 2 Cable type (mm): 1.6 Cable color: Aqua Length (m): 2 Outer diameter (mm): 1.6 Color: Aqua Cable diameter (mm): 1.6 Fiber type: OM3 Insertion/removal durability: 500 times Cable bending radius: Min. 32 mm (Long-term: Min. 16 mm) Height (mm): 9.02 Return loss (dB): > 26 dB Length (mm): 51.27 Width (mm): 12.95 Boot color: Aqua LC duplex on both ends Connector insertion loss: Max. 0.25 dB Return loss: > 26 dB Flame retardant grade: Riser (OFNR) Minimum bending radius: 32 mm Operating temperature range: -20 to 70 °C Material/Finish: Ferrule: Zirconia Boots: Synthetic resin Housing: Synthetic resin Duplex clip: Synthetic resin Dust cap: Synthetic resin
