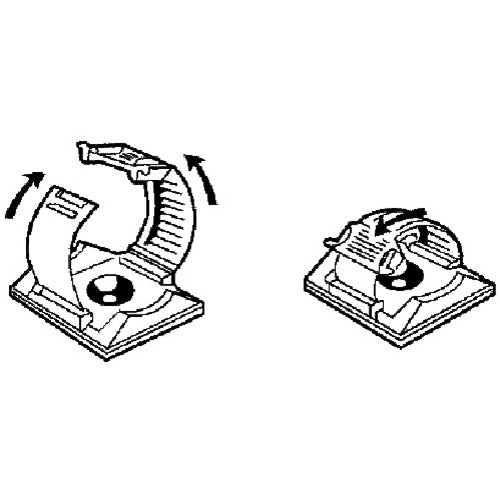

Catalog number: ARC.68-AQ Features: ●The clamp allows you to adjust the diameter of the bundle, so you can easily remove and replace the bundle. ●Quickly and securely fixes bundles of wires from φ4.8mm to φ17.3mm. Uses: ●Fixing wiring. Specifications: ●Color: White ●Type: ARC type ●Depth (mm): 25.4 ●Width (mm): 25.4 ●Maximum bundle diameter (mm): 17.3 ●Fixing method: With adhesive tape ●Maximum static load (g): 227 ●Mounting hole diameter (mm): 3.9 ●Compatible pipe diameter (mm): 4.8 to 17.3 ●For indoor use ●Usage temperature range: -29 to 49°C ●Maximum bundle diameter: 17.3mm ●Size (length x width) (mm): 25.4 x 25.4 ●M3 screw fixing possible ●Maximum static load: 227g Material/Finish: ●Polypropylene (PP)
