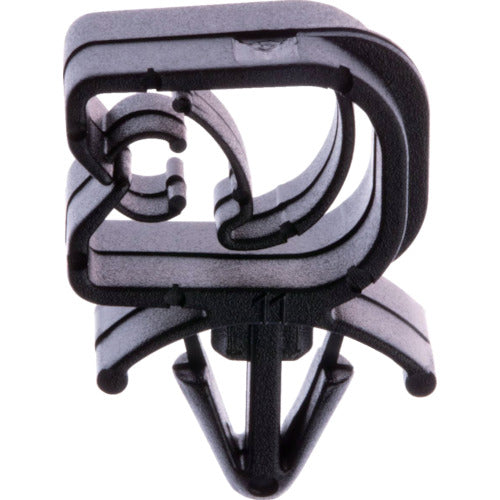

PANDUIT Fixture Harness Clip Black HCMP06C12-M20 HCMP06C12-M20 1 bag

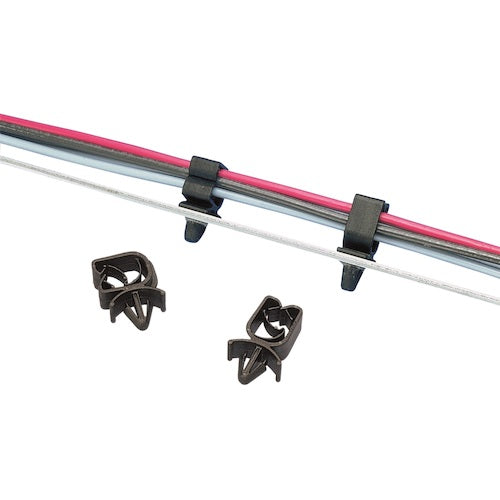

Catalog number: HCMP06C12-M20 Features: ● Integrated spring securely holds bundles of wires in place. Applications: ● For fixing cables. Specifications: ● Color: Black ● Length (mm): 27.9 ● Width (mm): 20.5 ● Height (mm): 10.3 ● Maximum bundle diameter (mm): 11.9 ● Minimum bundle diameter (mm): 6.1 ● Fixing method: Push-in ● Type: Horizontal insertion ● Panel thickness (mm): 0.6-3.0 ● Mounting hole diameter (mm): 6.3-7.2 ● Compatible bundle diameter (mm): 6.1-11.9 ● Horizontal insertion ● Compatible bundle diameter: 6.1-11.9mm ● Panel hole diameter: Φ6.3-Φ7.2 ● Panel thickness: 0.6-3.0mm ● For indoor use ● Operating temperature range: -60-85℃ Material/Finish: ● Nylon 66
