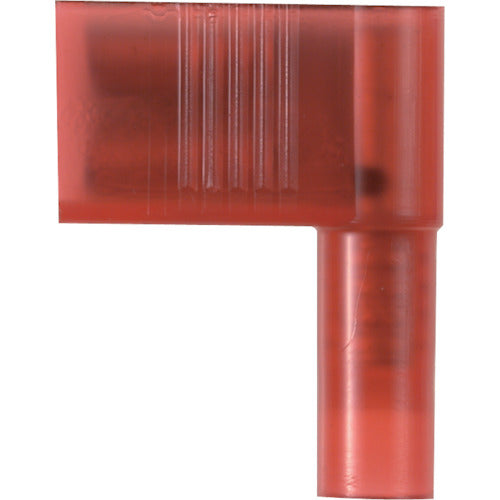

PANDUIT Crimp Terminal Right Angle Female Disconnect Nylon Insulated Type Funnel Insert AWG22-18 for 250 Tabs DNFR18-250B-L DNFR18-250B-L 1 Bag

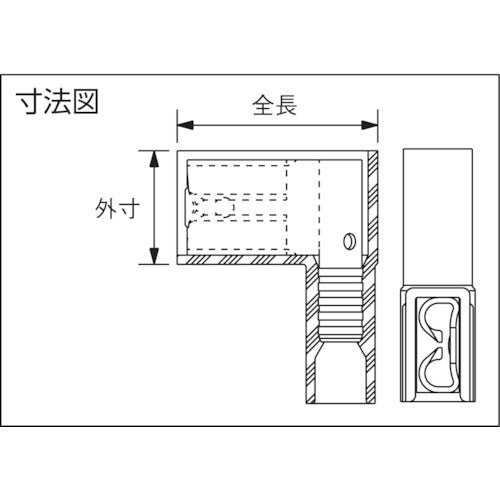

Catalog number: DNFR18-250B-L Features: ● Right-angle female disconnect for use in limited spaces. ● Can be crimped with standard crimping tools. Applications: ● For connecting copper wire. Specifications: ● Wire clamping range Stranded wire (mm2): 0.5-1.0 ● Wire clamping range AWG: 22-18 ● Color: Red ● External dimension (mm): 9.1 ● Total length (mm): 15.7 ● Maximum operating temperature (°C): 105 ● Rated voltage (V): 600 ● Compatible tab size: .205 x .032 ● Maximum insulation external diameter (mm): 3.3 ● External dimensions (mm): 9.1 ● Nylon insulation type/funnel insertion ● UL, CSA certified ● Recommended crimping tool: CT-1525 Material/Finish: ● Body: Brass ● Coating: Nylon
