PANDUIT Crimp Terminal Right Angle Female Disconnect Nylon Insulated Type/Funnel Insertion DNFR14-205B-L DNFR14-205B-L 1 Bag

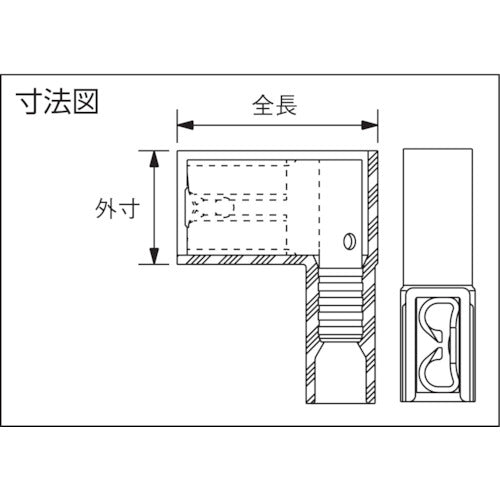

Catalog number: DNFR14-205B-L Features: ●Right-angle female disconnect for use in limited spaces. ●Can be crimped with standard crimping tools. Applications: ●For connecting copper wire. Specifications: ●Wire clamping range Stranded wire (mm2): 1.5-2.5 ●Wire clamping range AWG: 16-14 ●Color: Blue ●Outer diameter (mm): 9.1 ●Total length (mm): 16.0 ●Compatible tab size: .205/.187 x .032 ●Maximum insulation outer diameter (mm): 3.9 ●Outer dimensions (mm): 9.1 ●Nylon insulation type/funnel insertion ●UL, CSA certified ●Recommended crimping tool: CT-1525 Material/Finish: ●Body: Brass ●Coating: Nylon
