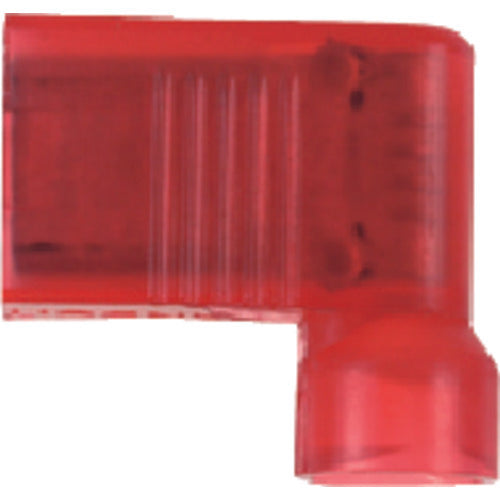

PANDUIT Crimp Terminal Right Angle Female Nylon Fully Insulated Type (50 Pieces) DNFR18-205FIB-L 1 Bag

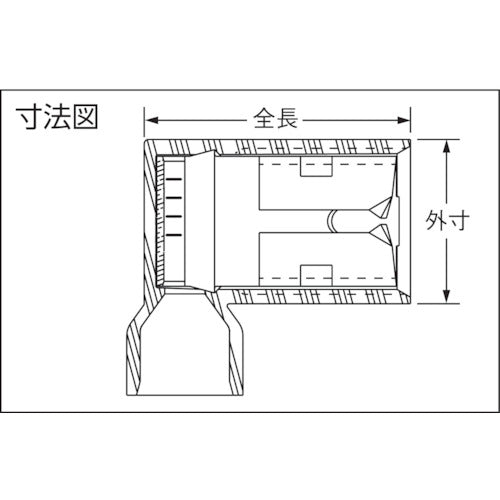

Catalog number: DNFR18-205FIB-L Features: ●Right-angle female crimp terminal suitable for use in limited spaces. ●Fully insulated with nylon, no need for insulating covers such as sleeves. ●A dedicated tool, CT-300-1 type, is required for crimping. Applications: ●For connecting electric wires. Specifications: ●Wire clamping range, stranded wire (mm2): 0.5-1.0 ●Wire clamping range, AWG: 22-18 ●Color: Red ●Total length (mm): 15.2 ●Maximum operating temperature (°C): 105 ●Compatible tab size: .205/.187 x .032 ●Maximum insulation outer diameter (mm): 4.5 ●External dimensions (mm): 9.4 ●Fully insulated nylon type/funnel insertion ●UL standard, CSA approved ●Recommended dedicated crimping tool: CT-300-1 Material/Finish: ●Body: Brass ●Coating: Nylon
