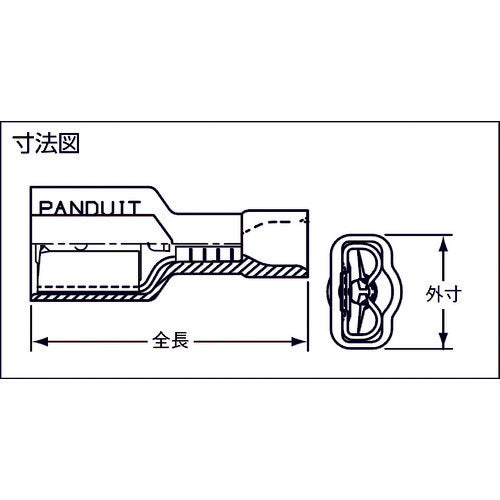

Catalog number: DNF14-205FIB-C Features: ●A disconnect that is fully insulated with nylon, so no insulating cover such as a sleeve is required. ●There is a wire stopper inside the barrel, so the wire can be inserted to the correct position. Applications: ●Interlocking of copper wires. Specifications: ●Wire clamping range Stranded wire (mm2): 1.5 to 2.5 ●Wire clamping range AWG: 16 to 14 ●Color: Blue ●Total length (mm): 19.8 ●Rated voltage (V): 600 ●Maximum insulation outer diameter: 4.1 mm ●Tab size (mm): 5.2/4.75 x 0.8 ●Maximum operating temperature: 105°C (indoors) ●UL310 certified Material/Finish: ●Brass ●Tin plating ●Nylon 66
