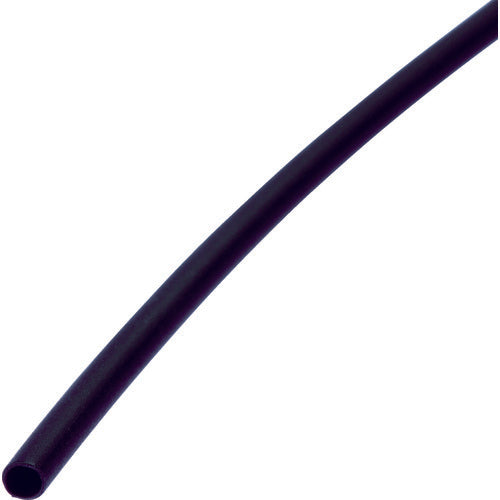

PANDUIT Heat Shrink Tubing UL224VW-1 Certified Economy Pack 12 Tubes HSTTV38-Y 1 Box
PANDUIT Heat Shrink Tubing UL224VW-1 Certified Economy Pack 12 Tubes HSTTV38-Y 1 Box
Regular price
¥1,822
Regular price
Sale price
¥1,822
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: HSTTV38-Y Features: ●Low shrink temperature allows use on wire products that are sensitive to heat, and reduces the time required for insulation, protection, and identification. ●Heat shrink tubing packed in small quantities to avoid waste. Applications: ●For use with products that cannot withstand high shrink temperatures. Specifications: ●Color: Black ●Thickness after shrink (mm): 0.6 ●Inner diameter before shrink (mm): 9.5 ●Inner diameter after shrink (mm): 4.7 ●Length (mm): 152 ●Shrinkage rate (%): 50 ●Usage temperature range (℃): -55 to 125 ●Voltage resistance (V): 600 ●Usage temperature range: -55 to 135℃ ●Voltage resistance: 600V ●Shrinkage rate: 50% ●Shrinkage temperature: 85℃ ●MIL standard: AMS-DTL-23053 ●CSA certified ●UL224VW-1 certified Material/Finish: ●Polyolefin
