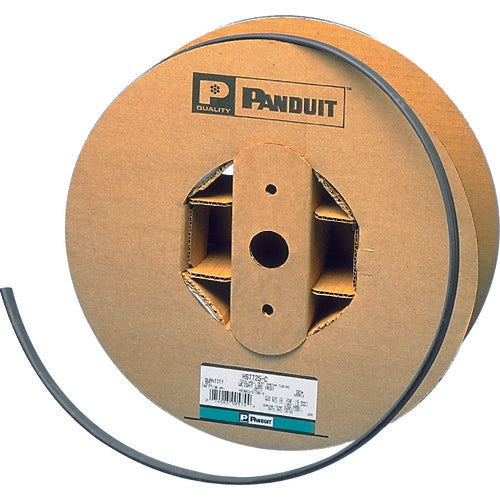

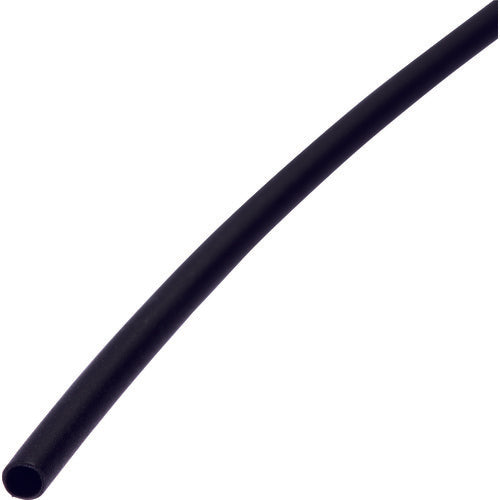

PANDUIT Heat Shrink Tubing UL224VW-1 Certified Long Type HSTTV09-C HSTTV09-C 1 Roll

Catalog number: HSTTV09-C Features: ●UL224VW-1 certified. ●Low shrinkage temperature, so it can be used for wire products that are sensitive to heat, and it also shortens the time required for insulation, protection, and identification. Applications: ●For insulation, protection, terminal processing, and identification of wiring inside equipment. ●For use with products that cannot withstand high shrinkage temperatures. Specifications: ●Color: Black ●Thickness after shrinkage (mm): 0.5 ●Inner diameter before shrinkage (mm): 2.4 ●Inner diameter after shrinkage (mm): 1.2 ●Shrinkage rate (%): 50 ●Length (m): 30.48 ●Usage temperature range (℃): -55 to 135 ●Shrinkage temperature (℃): 85 ●Voltage resistance (V): 600 Material/Finish: ●Polyolefin
