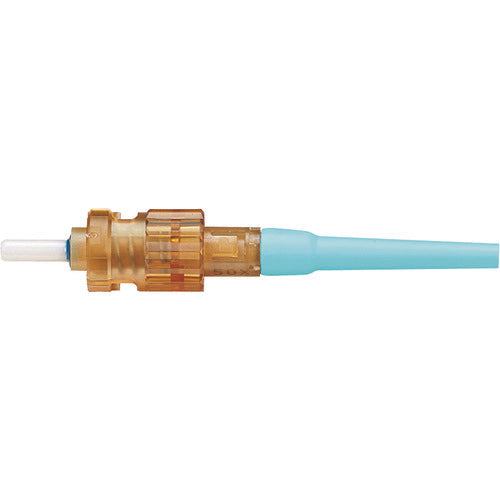

PANDUIT Polished ST Optical Connector Simplex OM3/0M4 Aqua FST2MCXAQ 1 pc

Catalog number: FST2MCXAQ Features: ● Simplex ST optical connector. ● Comes with a boot for 900μm buffer. ● Can be re-terminated up to two times. Applications: ● Optical cable connection. Specifications: ● Type: OM3/0M4 ● Boot color: Aqua ● Length (mm): 56.6 ● Return loss (dB): 26 or more ● Color: Aqua ● Length (mm): 88 ● Width (mm): 101 ● Height (mm): 101 ● Insertion loss (average): 0.3dB ● Operating temperature range: -10 to 60°C ● Indoor use ● Ferrule type: 2.5mm zirconia ceramic Material/Finish: ● Plastic ● Thermoplastic ● Zirconia ceramic Note: ● Please use the dedicated tool (FOCTT2-BKIT). ● Please prepare a dedicated boot separately for installation on 1.6 to 2.0mm cables and 3.0mm cables. ● Please prepare a bare wire tube separately for installation on 250μm bare wire.
