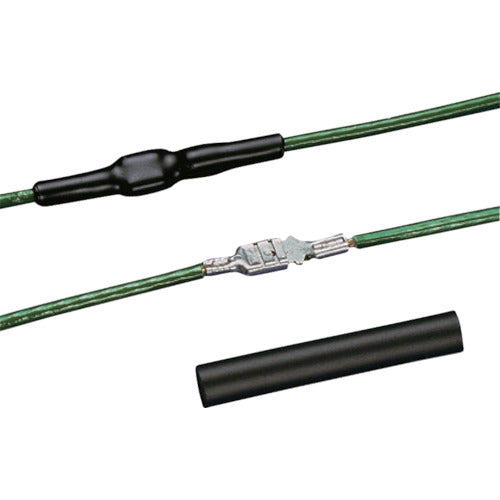

PANDUIT Adhesive Heat Shrink Tubing, Shrink Ratio 2:1, Standard Type (25 pcs) HSTTVA19-48-Q, 1 box

Catalog number: HSTTVA19-48-Q Features: *Adhesive is applied to the inner wall of the tube to protect the product from moisture and corrosion. *Ideal for insulating and protecting wiring inside equipment, terminal processing, and identification. *Excellent flexibility and flame retardancy. Specifications: Color: Black; Thickness after shrinkage (mm): 0.6; Inner diameter before shrinkage (mm): 4.7; Inner diameter after shrinkage (mm): 2.4; Length (mm): 1219; Compatible cable outer diameter (mm): 2.4-4.7; Compatible wire (mm2): None; Minimum compatible diameter (mm): 2.4; Maximum compatible diameter (mm): 4.7; Shrinkage rate (%): 50; Length (m): 1.219; Voltage resistance (V): 600; Operating temperature range: -55 to 110°C; Voltage resistance: 600V; Shrinkage rate: 50%; Shrinkage temperature: 121°C; MIL standard: AMS-DTL-23053; UL certified; Equivalent to UL224 VW-1; Material/Finish: Adhesive-backed polyolefin
