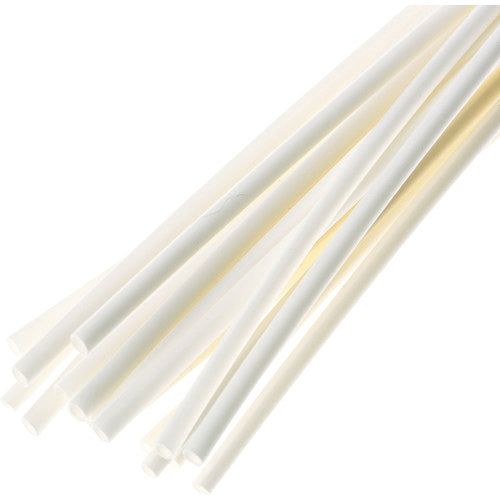

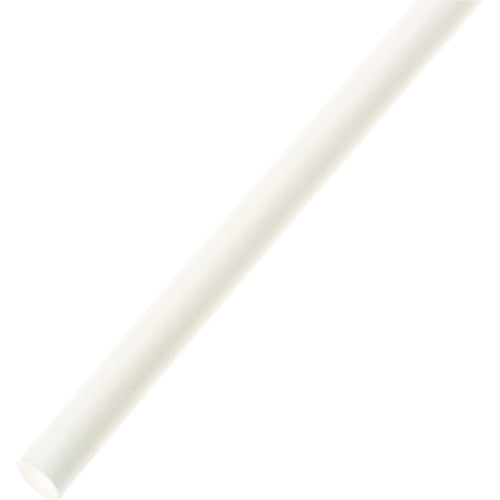

PANDUIT Adhesive Heat Shrink Tubing, Shrink Ratio 2.5:1, Standard Type, Pack of 5, HSTTRA75-48-5, 1 Box

Catalog number: HSTTRA75-48-5 Features: * A highly flexible heat shrink tube with an adhesive on the inner wall to protect products from moisture and corrosion. * Becomes semi-rigid after shrinking. * Suitable for protecting products with many irregularities. * Large shrinkage rate makes it useful for use at the connection between connectors and electric wires. Applications: * Protection of products in places with many irregularities in harsh environments. * In humid locations. * For the connection between connectors and electric wires. Specifications: Color: Black; Thickness after shrinkage (mm): 1.7; Inner diameter before shrinkage (mm): 19.1; Inner diameter after shrinkage (mm): 8.0; Length (mm): 1219; Shrinkage rate (%): 40; Operating temperature range (℃): -55 to 110; Withstand voltage (V): 600; Operating temperature range: -55 to 110℃; Withstand voltage: 600V; Shrinkage rate: 40%; Shrinkage temperature: 121℃; MIL standard: AMS-DTL-23053; UL certified; Equivalent to UL224VW-1 (excluding adhesive); Material/Finish: Polyolefin with adhesive
