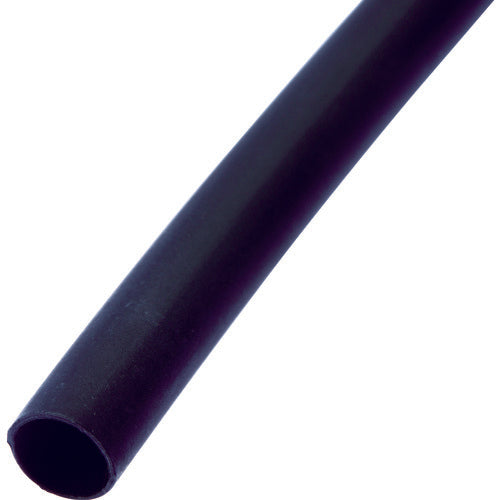

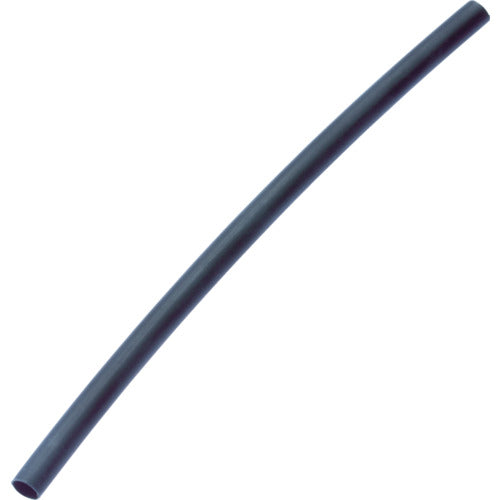

PANDUIT Adhesive Heat Shrink Tubing, Shrink Ratio 3:1, Economy Pack, 1 Piece, HSTTA150-Y, 1 Bag

Catalogue number: HSTTA150-Y Features: * Highly flexible heat shrink tubing with adhesive on the inner wall to protect products from moisture and corrosion. * Suitable for protecting products with many irregularities. * Large shrinkage rate makes it useful for use at the connection between connectors and electric wires. * Small packs to eliminate waste. * Suitable for use at the connection between cables and connectors. Applications: * Protection of products in areas with many irregularities. * In humid locations. * For the connection between connectors and electric wires. Specifications: ●Color: Black ●Thickness after shrinkage (mm): 2.5 ●Inner diameter before shrinkage (mm): 38.1 ●Inner diameter after shrinkage (mm): 13.0 ●Length (mm): 152 ●Shrinkage rate (%): 33 ●Operating temperature range (℃): -55 to 110 ●Voltage resistance (V): 600 ●Operating temperature range: -55 to 110℃ ●Shrinkage rate: 33% ●Shrinkage temperature: 121℃ ●MIL standard: AMS-DTL-23053 ●UL224VW-1 equivalent (excluding adhesive) Material/Finish: ●Polyolefin with adhesive
