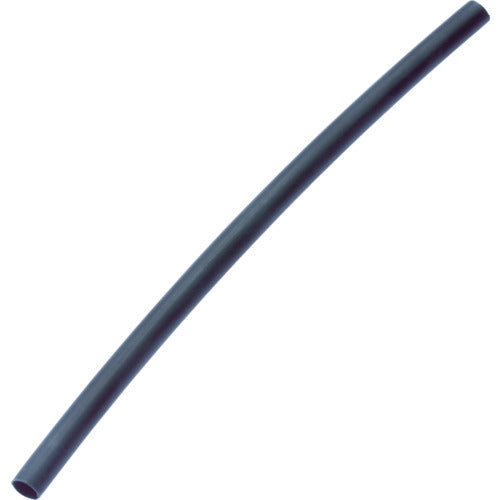

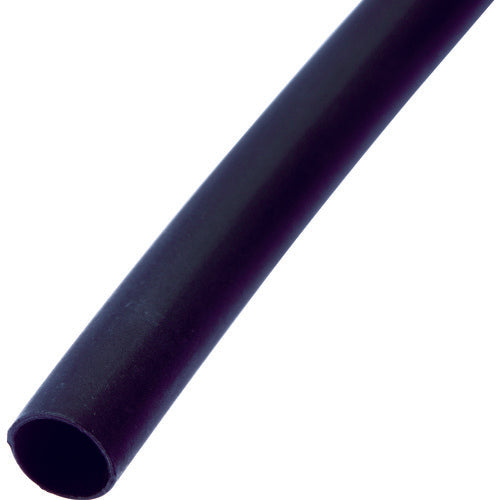

PANDUIT Adhesive Heat Shrink Tubing, Shrink Ratio 3:1, Economy Pack, 2 Tubes, HSTTA100-Y, 1 Bag

Catalogue number: HSTTA100-Y Features: * Highly flexible heat shrink tubing with adhesive on the inner wall to protect products from moisture and corrosion. * Suitable for protecting products with many irregularities. * Large shrinkage rate makes it useful for use at the connection between connectors and electric wires. * Small packs to eliminate waste. * Suitable for use at the connection between cables and connectors. Applications: * Protection of products in areas with many irregularities. * In humid locations. * For the connection between connectors and electric wires. Specifications: Color: Black; Thickness after shrinkage (mm): 2.5; Inner diameter before shrinkage (mm): 25.4; Inner diameter after shrinkage (mm): 8.1; Length (mm): 152; Shrinkage rate (%): 33; Operating temperature range (℃): -55 to 110; Withstand voltage (V): 600; Operating temperature range: -55 to 110℃; Withstand voltage: 600V; Shrinkage rate: 33%; Shrinkage temperature: 121℃; MIL standard: AMS-DTL-23053; Equivalent to UL224VW-1 (excluding adhesive); Material/Finish: Polyolefin with adhesive
