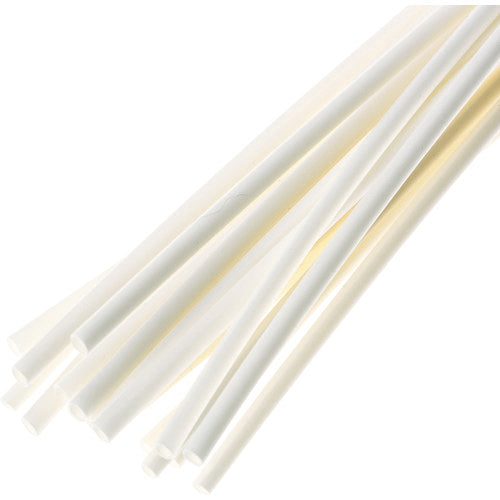

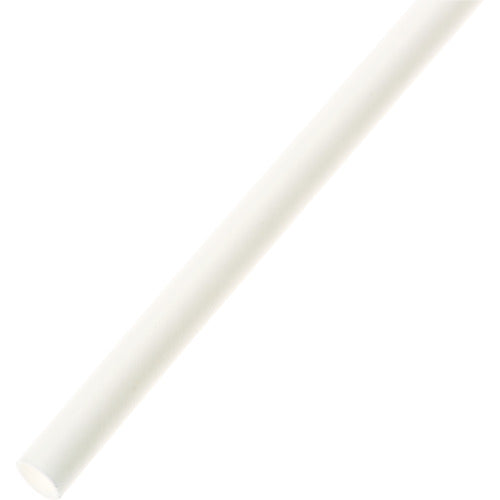

PANDUIT Adhesive Heat Shrink Tubing, Shrinkage Ratio 4:1, Standard Type (5 pcs) HSTT4A200-48-5 1 box

Catalog number: HSTT4A200-48-5 Features: ● A highly flexible heat shrink tube with an adhesive on the inner wall to protect products from moisture and corrosion. ● Suitable for protecting products with many bumps and grooves. ● Large shrinkage rate makes it useful for connecting connectors and electric wires. Applications: ● Insulation, protection, terminal processing, and identification of wiring inside equipment. Specifications: ● Color: Black ● Shrinkage thickness (mm): 2.5 ● Inner diameter before shrinkage (mm): 52.1 ● Inner diameter after shrinkage (mm): 13.0 ● Length (mm): 1219 ● Shrinkage rate (%): 25 ● Operating temperature range (℃): -55 to 110 ● Withstand voltage (V): 600 ● Operating temperature range: -55 to 110℃ ● Shrinkage rate: 25% ● Shrinkage temperature: 121℃ ● MIL standard: AMS-DTL-23053 ● UL certified product ● Equivalent to UL224VW-1 (excluding adhesive) Material/Finish: ● Polyolefin with adhesive
