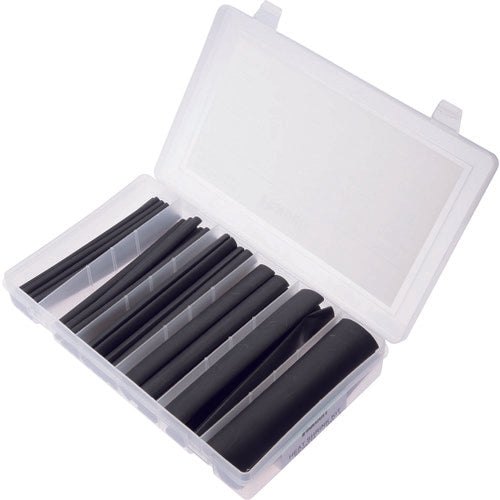

PANDUIT Adhesive Heat Shrink Tubing Shrink Ratio 3:1 Kit Box KP-HSTTA 1 pc

Catalog number: KP-HSTTA Features: ● A highly flexible heat shrink tube with an adhesive on the inner wall to protect the product from moisture and corrosion. ● A kit box containing a small amount of each size. ● Equivalent to UL224VW-1. ● Suitable for use at the connection between cables and connectors. Applications: ● Insulation, protection, and terminal processing of wiring inside equipment Specifications: ● Color: Black ● Wall thickness after shrinkage (mm): 1.0, 1.4, 1.8, 2.2 ● Inner diameter before shrinkage (mm): 4.7, 6.4, 9.5, 12.7, 19.1, 25.4 ● Inner diameter after shrinkage (mm): 1.6, 2.0, 3.0, 4.1, 6.4, 8.1 ● Length (mm): 152 ● Shrinkage rate (%): 33 ● Operating temperature range (℃): -55 to 110 ● Shrinkage Shrinkage temperature (℃): 121 ● Voltage resistance (V): 600 ● Adhesive: Included ● Set contents: 4.7 x 14 pieces, 6.9 x 12 pieces, 9.5 x 10 pieces, 12.7 x 6 pieces, 19.1 x 3 pieces, 25.4 x 2 pieces ● Length: ● Operating temperature range: -55 to 110℃ ● Voltage resistance: 600V ● Shrinkage rate: 50% ● Shrinkage temperature: 127℃ ● UL, CSA standard product (except transparent) Material/Finish: ● Polyolefin with adhesive Note: ● This product cannot be canceled.
