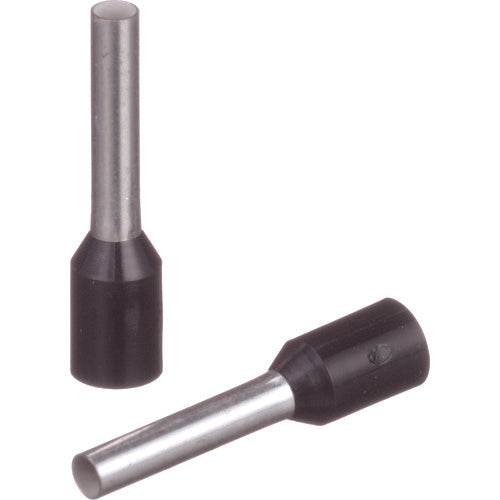

PANDUIT Insulated Ferrule Terminal (SingleWire DIN Standard) AWG16 Black 500 Pieces FSD78-10-D FSD78-10-D 1 Box

Catalog number: FSD78-10-D Features: ●The color of the polypropylene insulating sleeve conforms to German standards (DIN). ●Funnel insertion makes it easy to insert the wire. ●The terminal has no joints, preventing snagging when inserting twisted wires. Applications: ●For plug-in terminal blocks, etc. Specifications: ●Wire compatibility range Stranded wire [MM2]: 1.5 ●Wire compatibility range AWG: 16 ●Color: Black ●Total length (mm): 16.5 ●L (mm): 16.5 ●Maximum insulation outer diameter (mm): 3.0 ●P (mm): 10 ●ID (mm): 1.8 ●Heat resistance temperature (℃): 105 ●Recommended tools: CT-1160, CT-1170 ●Wire compatibility range Solid wire (mm): 1.5 ●For single wire ●Compatible wire size (mm): 1.5 ●Compatible wire size AWG: 16 ●Pin length (mm): 10 ●Sleeve color: Black ●Sheathing strip length (mm): 13.5 ●Maximum insulation outer diameter (mm): 3.0 Material/Finish: ●Copper (tin plated) ●Polypropylene
