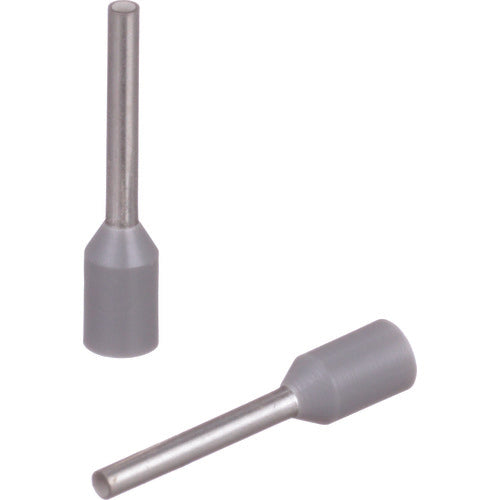

PANDUIT Insulated Ferrule Terminal (SingleWire DIN Standard) AWG26 Gray 500 Pieces FSD72-8-D FSD72-8-D 1 Box

Catalog number: FSD72-8-D Features: ●The color of the polypropylene insulating sleeve conforms to German standards (DIN). ●Funnel insertion makes it easy to insert the wire. ●The terminal has no joints, preventing snagging when inserting twisted wires. Applications: ●For plug-in terminal blocks, etc. Specifications: ●Wire compatibility range Stranded wire [MM2]: 0.14 ●Wire compatibility range AWG: 26 ●Color: Gray ●Total length (mm): 12.5 ●L (mm): 12.5 ●Maximum insulation outer diameter (mm): 2.0 ●P (mm): 8 ●ID (mm): 0.8 ●Heat resistance temperature (℃): 105 ●Wire compatibility range Solid wire (mm): 0.14 ●For single wire ●Compatible wire size (mm): 0.14 ●Compatible wire size AWG: 26 ●Pin length (mm): 8 ●Sleeve color: Gray ●Sheathing strip length (mm): 11.9 ●Maximum insulation outer diameter (mm): 2.0 Material/Finish: ●Copper (tin plated) ●Polypropylene
