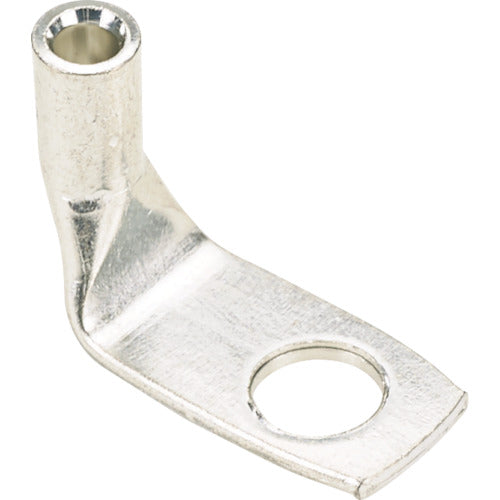

PANDUIT Copper Compression Terminal Standard Barrel 1 Hole 90° Angle (50 Pieces) LCA10-14F-L 1 Bag

Catalog number: LCA10-14F-L Features: ●One-hole compression terminal for copper wire. ●Die number is displayed on the barrel to identify the applicable wire size and the tool to be used. ●The hole in the barrel allows you to check if the wire is fully inserted. ●Tin plated to prevent rust. Applications: ●For connecting wires. Specifications: ●Wire clamping range AWG: AWG14-10 stranded wire, AWG12-10 solid wire ●Total length (mm): 23.87 ●Thickness (mm): 1.27 ●Mounting hole size (mm): 9.6 ●Width (mm): 10.66 ●UL/CSA/RoHS compliant Material/Finish: ●Copper
