PANDUIT Copper Compression Terminal Standard Barrel 2 Holes (50 Pieces) LCD6-14A-L 1 Bag

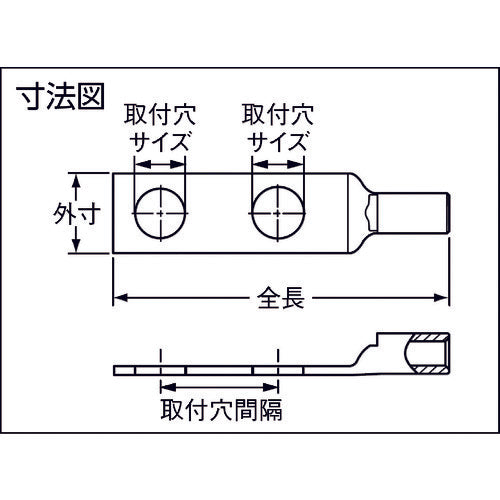

Catalog number: LCD6-14A-L Features: ●Two-hole compression terminal for copper wire. ●The die number is displayed on the barrel so that the applicable wire size and the tool to be used can be identified. ●The wire checking hole in the barrel allows you to check whether the wire is fully inserted. ●Tin plated to prevent rust. Applications: ●For connecting wires. Specifications: ●Wire clamping range Solid wire (mm): 4.1 ●Wire clamping range Stranded wire (［［MM2］］): 4.1 ●Wire clamping range AWG: 6 ●External diameter (mm): 12.2 ●Stud diameter (mm): 6.9 ●Total length (mm): 56.9 ●JIS standard product: × ●Mounting hole size (mm): 6.9 ●Mounting hole spacing (mm): 16.0 ●Quantity per bag (pieces): 50 ●External dimensions (mm): 12.2 ●UL/CSA/RoHS compliant Material/Finish: ●Copper
