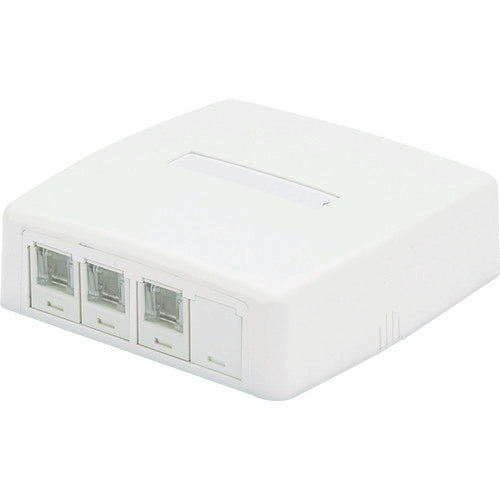

PANDUIT CAT5E Spring Shutter Rosette Kit 4 Ports (3 Jacks + 1 Blank) White JOQ3BH500 JOQ3BH500 1 pc

Catalogue number: JOQ3BH500 Features: ● Modular jack installation kit. ● The jack has a shutter, providing dust protection. ● The shutter has a push-out structure, making it easy to insert and remove the LAN cable. ● The cover structure has been improved, making it easier to open and close even after installation. ● The magnet performance has been improved, making it easier to hold. ● Color icons (sold separately) can be attached, making it easy to identify ports. ● Jacks can be installed in blank ports for expansion. Applications: ● Information outlet. ● Box-type LAN outlet. Specifications: Color: White Number of ports: 4 (1 blank + 3 jacks) Type: CAT5E Height (mm): 30.00 Depth (mm): 93.98 Width (mm): 95.35 Operating temperature range: -10 to 60°C For indoor use AWG22 to 26 solid or twisted wire Insulation outer diameter: Maximum Φ1.52mm Outer coating diameter: Φ5.08 to 8.38mm Termination tool: EGJT-1 Material/Finish: ABS synthetic resin Set contents/Accessories: Magnet Cable ties
