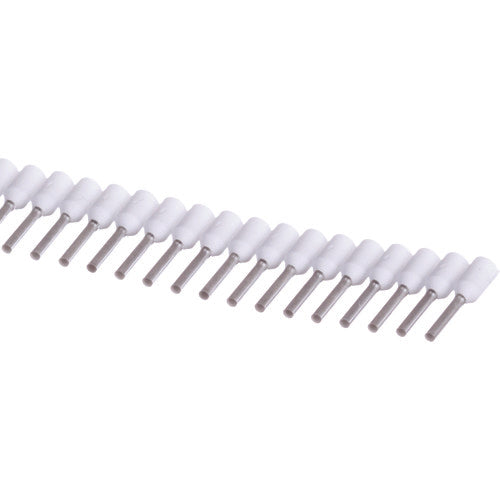

PANDUIT CT-1000 insulated ferrule terminal, white, 500 pieces, FSD75-8-DSL10, FSD75-8-DSL10, 1 bag

Catalog number: FSD75-8-DSL10 Features: ●Special tool: Insulated ferrule terminal for CT-1000. ●50 pieces connected. ●Continuous molding design of ferrules keeps ferrule position constant in tool for fast and reliable crimping. ●With polypropylene insulation based on DIN color code. Applications: ●Connection to terminal block. Specifications: ●Wire compatibility range Stranded wire [MM2]: 0.5 ●Wire clamping range Stranded wire (MM2): 0.5 ●Wire clamping range Nickel stranded wire (MM2): 0.5 ●Wire clamping range AWG: 20 ●Wire compatibility range AWG: 20 ●Color: White ●Total length (mm): 15.2 ●Stud diameter (mm): 1.0 ●Outer diameter (mm): 0.9 ●Inner dimension (mm): 0.8 ●L (mm): 15.2 ●Maximum insulation outer diameter (mm): φ2.6 ●P (mm): 8 ●ID (mm): 1.0 ●Conductive part length: 8mm ●Recommended stripping length: 10mm ●Special tool: CT-1000 ●UL, CSA certified Material/Finish: ●Copper ●Polypropylene
