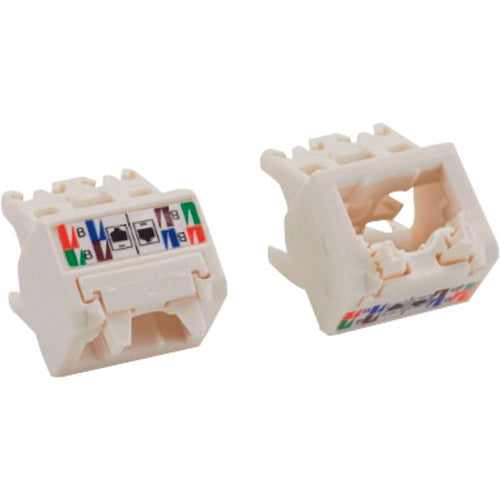

PANDUIT Mini-Com Modular Jack TG Type 45 Degree Angle Cap Category 6 Off-White 10 Pieces CJUDCAPIW-X 1 Bag

Catalog number: CJUDCAPIW-X Features: ● 45 degree angle cap for TG modular jacks. ● Allows cables with large outer diameters to be wired to modular jacks in narrow spaces such as inside walls while maintaining the proper bend radius. ● Can also be used with multiple modular jacks located next to each other. ● By maintaining the proper bend radius of Φ6.99mm cables, the depth inside the mounting surface such as a wall can be reduced by 55% compared to a straight cap. (Straight cap 27.9mm vs. 45 degree cap 12.7mm) ● Cable entry is possible at 45 degree angles up and down. Applications: ● 45 degree cap for TG modular jacks. Specifications: ●Color: Off-white ●Category: 6 ●Type: 6 ●Number of ports: 1 ●Compatible jack: CJ688TG□□ ●Compatible cables: AWG22 to 26 solid and twisted wires ●Height (mm): 23.9 ●Width (mm): 15.5 ●Width (mm): 23.9 ●Depth (mm): 16 ●Operating temperature range (℃): -10 to 65 ●Compatible cable insulator outer diameter (mm): Maximum Φ1.52 ●Compatible cable outer coating diameter (mm): Φ5.08mm to 8.38 Caution: ●Cannot be used in rosette boxes.
