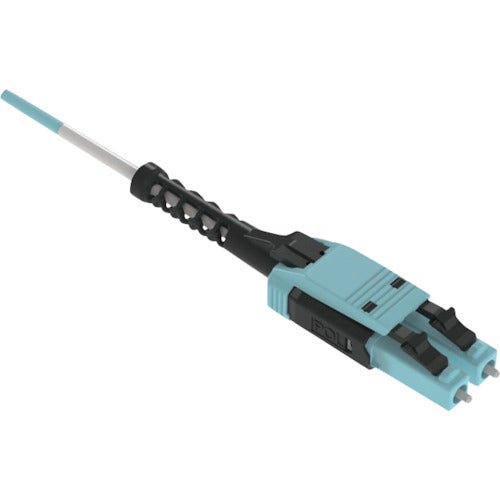

PANDUIT Opti-Core[TM] LC Uniboot Fiber Patch Cord Ultra Low Loss Type OM4 Both Ends PC Polished Flame Retardant: Plenum Aqua 1M FZ2RPU1U1NNM001 1 Piece

Catalog number: FZ2RPU1U1NNM001 Features: ●The 2-core 2.0mm round cable allows for efficient use of space even in high-density environments. ●The connector has a slim shape, making it easy to work with in high-density environments. ●The space occupied by the cable can be reduced by 50%. ●It can be mated with any transceiver shape. ●It can be removed in three ways (pushing from above, pulling by holding both sides, and using a pull boot) depending on the situation, making it easier to insert and remove. ●The polarity can be easily changed by simply rotating the connector and housing 180 degrees each. ●The conversion status can be easily checked through the window on the side of the housing. ●Both ferrules can now be rotated at the same time, preventing fiber exposure. ●There are no parts that are likely to be dropped or lost when changing polarity. Applications: ●For use in interconnects and cross-connects in entrance facilities, communication rooms, and data centers. ●For use in main wiring, horizontal wiring in tabletop and network, and interconnecting pre-terminated cassettes in equipment wiring areas. Specifications: ●Type: OM4 ●Number of cores: 2 ●Cable type (mm): 2.0 ●Cable color: Aqua ●Length (m): 1 ●Cable diameter (mm): 2.0 ●Fiber type: Multimode OM4 50/125μm ●Duplex LC Uniboot (PC polished) on both ends ●Flame retardant grade: Plenum ●Minimum bending radius: 20mm (40mm in operation) ●Connector insertion loss: Maximum 0.10dB ●Connector return loss: Minimum 26dB ●Operating temperature range: -10 to 60°C
