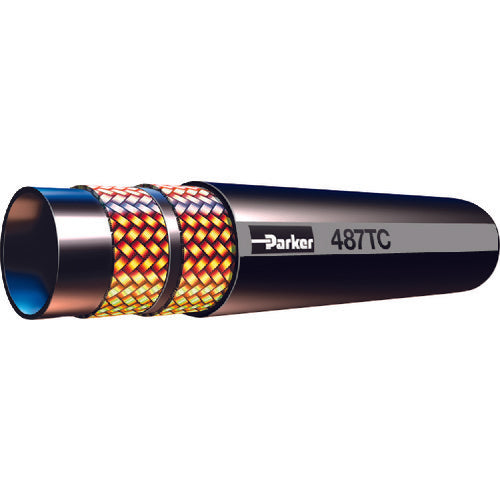

Parker Global Core Hose 4000psi 487TC-16 10CM

Catalog number: 487TC-16 Features: ●As this is a cut hose, please note that it will be shipped at a later date. ●As this is a processed product, returns are not accepted. ●All sizes can be used with a normal pressure of 4000 psi (28 MPa). Applications: ●For machine tools and other hydraulic equipment in general. ●For pressures of 28 MPa. Specifications: ●Outer diameter (mm): 37.8 ●Inner diameter (mm): 25.0 ●Operating pressure (MPa): 28.0 ●Allowable bending radius (mm or more): 150 ●Inner diameter of hose (inch): 1 ●Dash designation: 16 ●Operating temperature range (℃): -40 to +125 ●Total length of original roll (m): 18 ●Hose: ISO18752 standard (pressure standard) and SAE standard (structural standard) Material/Finish: ●Synthetic rubber Note: ●As this is a cut hose, returns are not accepted. ●Please check the size before ordering.
