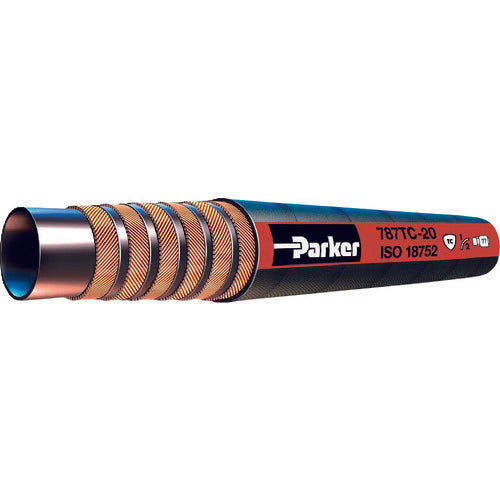

Parker Global Core Hose 5000psi 787TC-12 10CM

Catalog number: 787TC-12 Features: ●As this is a cut hose, please note that it will be shipped at a later date. ●As this is a processed product, returns are not accepted. ●Parker's GlobalCore787 hose provides constant operation of 5000 psi (35 MPa). Applications: ●For machine tools and other hydraulic equipment in general. ●For pressures of 35 MPa. Specifications: ●Outer diameter (mm): 27.9 ●Inner diameter (mm): 19.0 ●Operating pressure (MPa): 35.0 ●Allowable bending radius (mm or more): 120 ●Inner diameter of hose (inch): 3/4 ●Dash designation: 12 ●Operating temperature range (℃): -40 to +125 ●Total length of original roll (m): 61 ●Hose: ISO18752 standard (pressure standard) and SAE standard (construction standard) Material/Finish: ●Synthetic rubber Note: ●As this is a cut hose, returns are not accepted. ●Please check the size before ordering.
