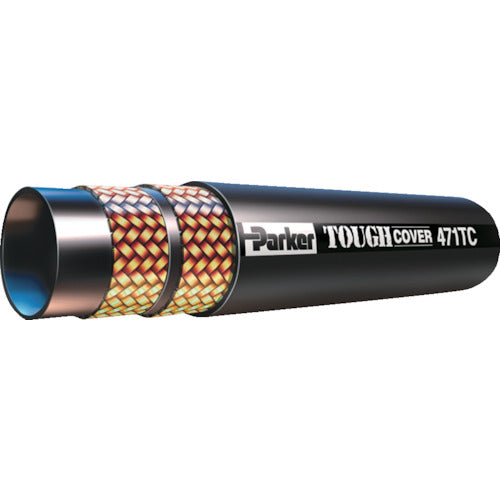

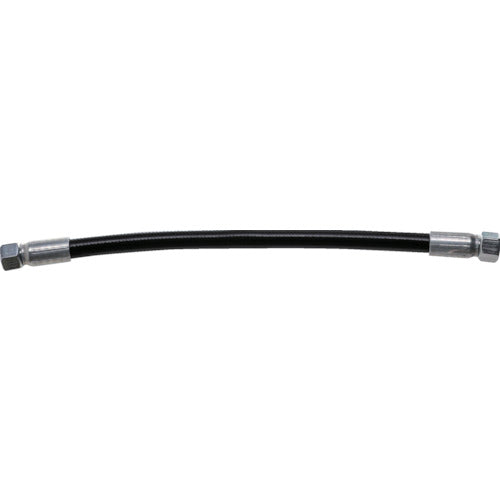

Parker Global Core Hose F387TCFUFU040404-100CM 1 piece

Catalog number: F387TCFUFU040404-100CM Features: ●Please note that the product will be shipped at a later date due to the hose being cut and the joints on both ends being crimped. ●Please refrain from returning the product due to the processing. ●All sizes can be used with a normal pressure of 3000 psi (21 MPa). Applications: ●For machine tools and other hydraulic equipment in general. Specifications: ●Outer diameter (mm): 13.4 ●Inner diameter (mm): 6.3 ●Operating pressure (MPa): 21.0 ●Allowable bending radius (mm or more): 50 ●Inner diameter of hose (inch): 1/4 ●Fittings part number: 1FU43-4-4 ●Hose: ISO18752 standard (pressure standard) and SAE standard (structural standard) ●Applicable fluid: Petroleum-based hydraulic fluid and lubricating oil ●Length: 1m ●Tough cover type Material/Finish: ●Synthetic rubber Note: ●Returns are not possible due to the hose being cut and the joints on both ends being crimped. ●Please check the size before ordering.
