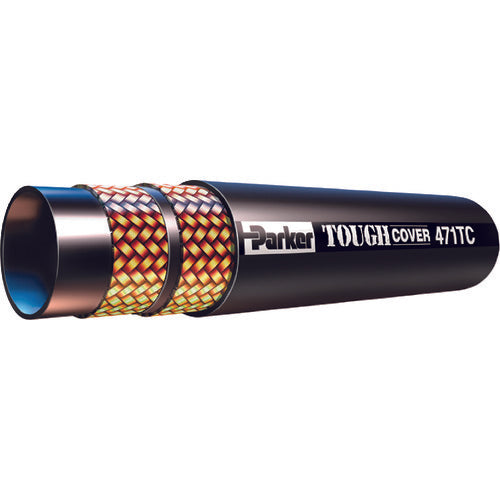

Parker Hydraulic Industry Standard Hose 471TC-6 10 CM

Catalog number: 471TC-6 Features: ●As this is a cut hose, please note that it will be shipped at a later date. ●As this is a processed product, returns are not accepted. ●Parker's 471TC hose is a hydraulic industry standard hose with a pressure range of 2500 to 5800 psi and has a synthetic rubber inner tube that provides compatibility with a wide range of fluids. Applications: ●For machine tools and other hydraulic equipment in general. ●For pressures of 35 MPa. Specifications: ●Outer diameter (mm): 17.0 ●Inner diameter (mm): 10.0 ●Operating pressure (MPa): 35.0 ●Allowable bending radius (mm or more): 65 ●Inner diameter of hose (inch): 3/8 ●Dash designation: 6 ●Operating temperature range (℃): -40 to +100 ●Total length of original roll (m): 100 ●Hose: ISO18752 standard (pressure standard) and SAE standard (construction standard) Material/Finish: ●Synthetic rubber Note: ●As this is a cut hose, returns are not accepted. Please check the size before placing your order.
