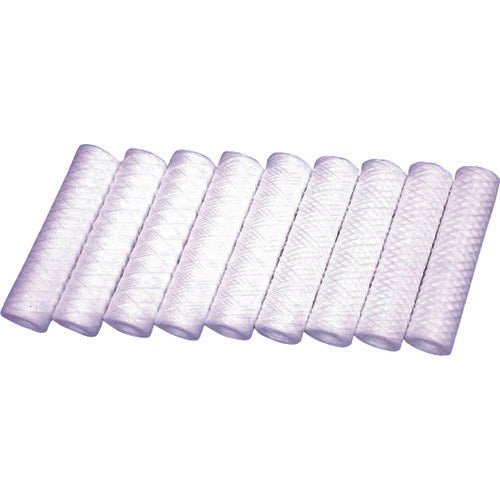

Parker Thread Wound Filter Cartridge CW Series CW750-005 1 pc

Catalog number: CW750-005 Features: ●A thread-wound filter cartridge with cotton filter material. ●Because it is made of cotton filter material, it has excellent resistance to high temperatures and chemicals. Applications: ●Filtration of rolling oil, lubricating oil, and work oil. ●Filtration of boiler condensate. ●Filtration of minerals, industrial oil, organic agents, etc. Specifications: ●Filtration accuracy (μm): 0.5 ●Outer diameter (mm): 60 ●Length (mm): 750 ●Inner diameter (mm): 30 ●Length (inch): 9.84 ●Maximum operating temperature (℃): 120 ●Recommended replacement differential pressure (MPa): 0.14 to 0.21 ●Maximum operating temperature: 120℃ ●Recommended replacement differential pressure: 0.14 to 0.21MPa ●Inner diameter x outer diameter: 30 x 60mm Material/Finish: ●Filter material: Cotton ●Core: Stainless steel (SUS304)
