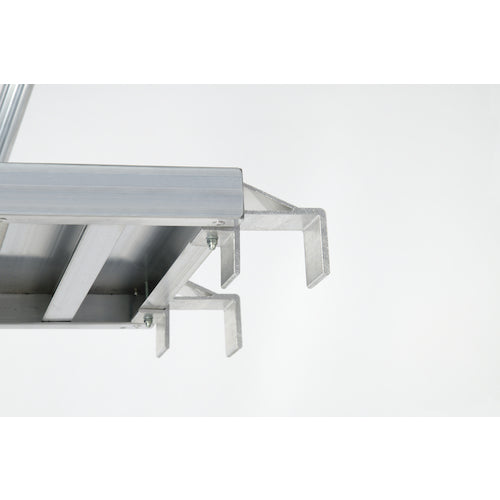

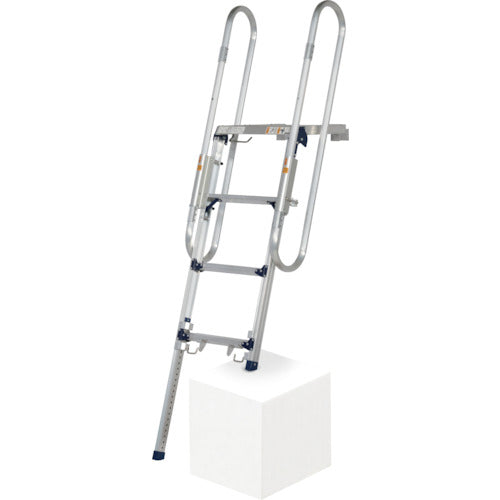

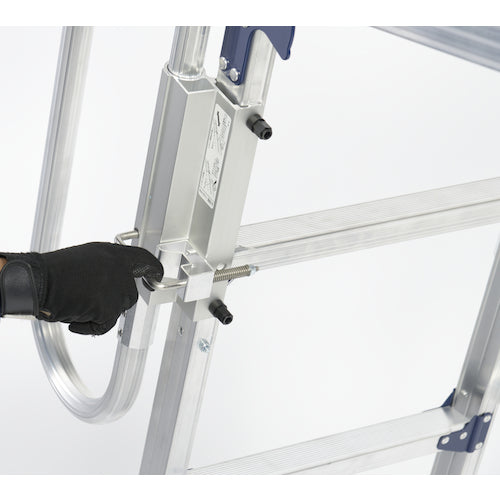

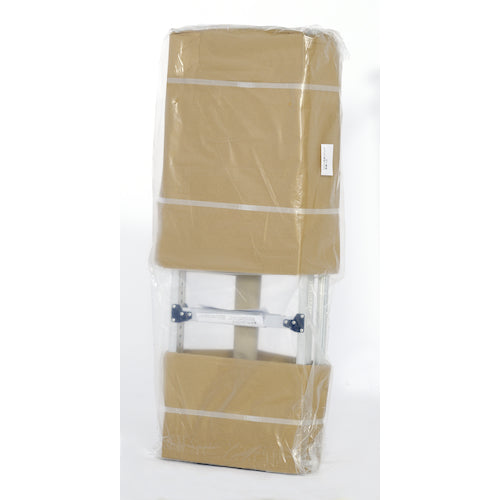

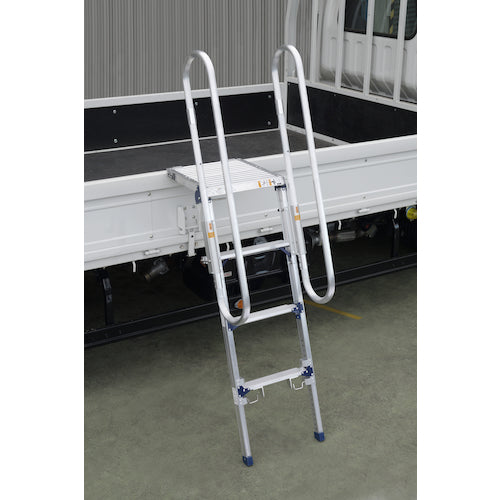

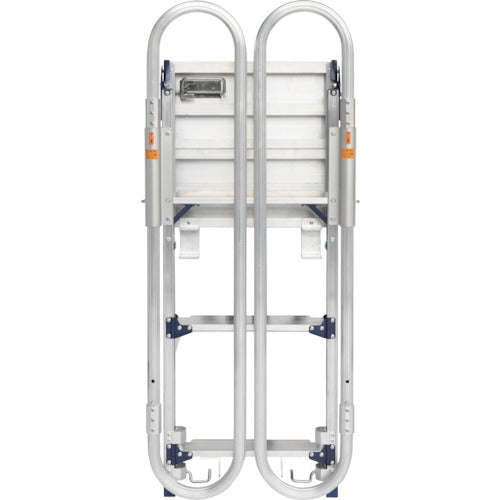

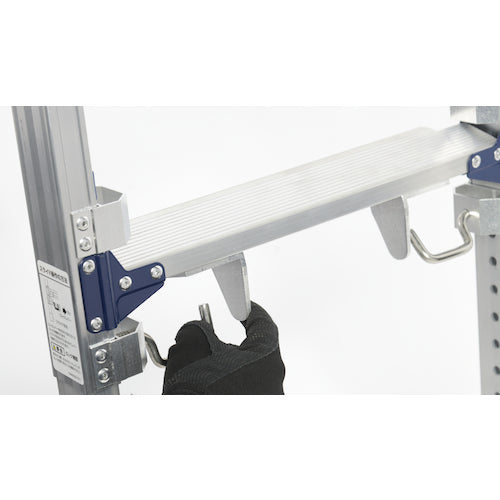

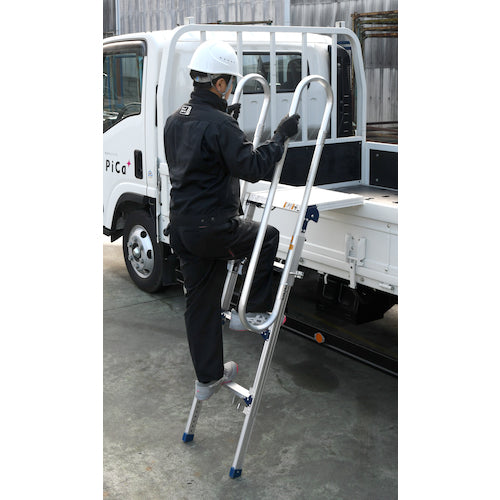

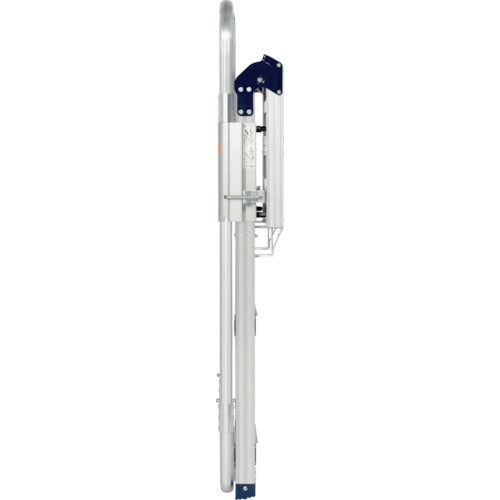

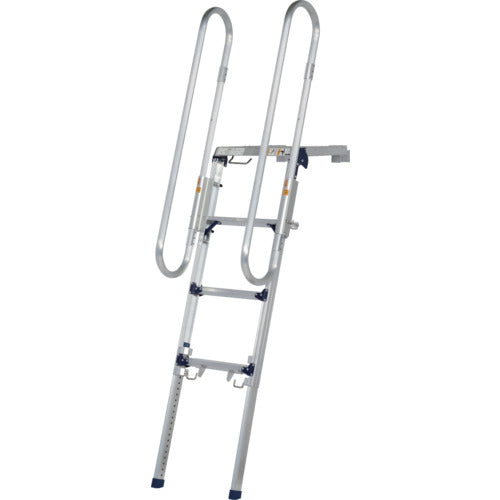

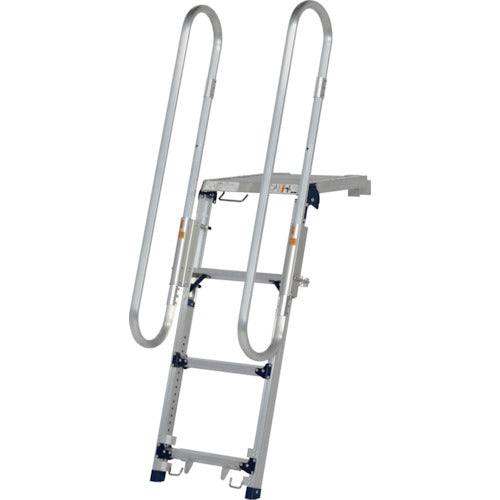

Catalog number: DXF-14TEA Features: ● Truck climbing step with foldable handrail. ● Attaches to the tailgate of a truck to support climbing up and down to the loading platform. Uses: ● For climbing up and down to the truck loading platform and loading and unloading luggage. Specifications: ● Maximum load (kg): 150 ● Top plate height (m): 1.02-1.45 ● Top plate dimensions (mm): 400 x 427 ● Number of steps (steps): 4 ● Installation height (mm): 999-1429 ● Effective hook width (mm): 63 ● Total length (m): (excluding handrails) 1024-1454 ● Storage dimensions (mm): Total length 1235 x width 540 x thickness 165 ● Total installation height (mm): (including handrails) 1645-2075 ● Installation dimensions (mm): Total length 1235 x width 540 x thickness 165 ● Storage dimensions (mm) Total length x width x thickness: 1235 x 540 x 165 ● Total length (excluding handrails) (mm): 1024-1454 ● Total installed height (including handrails) (mm): 1645-2075 ● Step spacing (mm): 317 ● Foldable ● Step tread width: 55mm ● Step spacing: 317mm (D x F-14TEA), 283mm (D x F-18TEA) ● Leg extension pitch: 25mm ● Maximum leg extension width: 430mm ● Leg extension type ● Hook inner width dimension: 63mm Material/Finish: ● Aluminum alloy Caution: ● Do not use with a maximum load capacity of more than 150kg.
