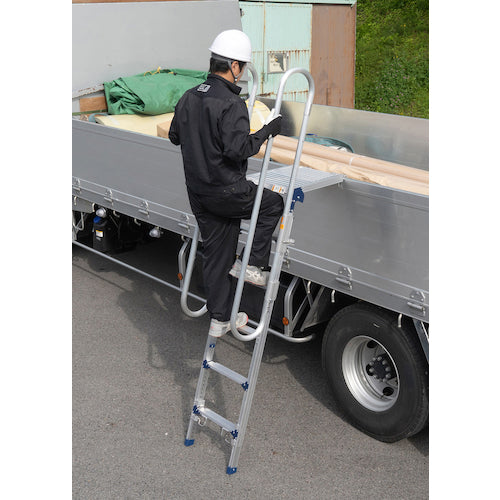

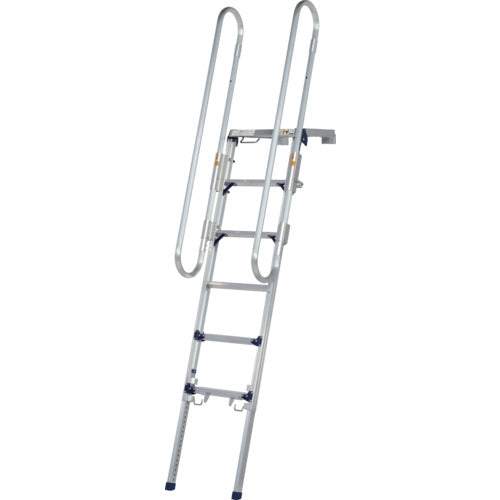

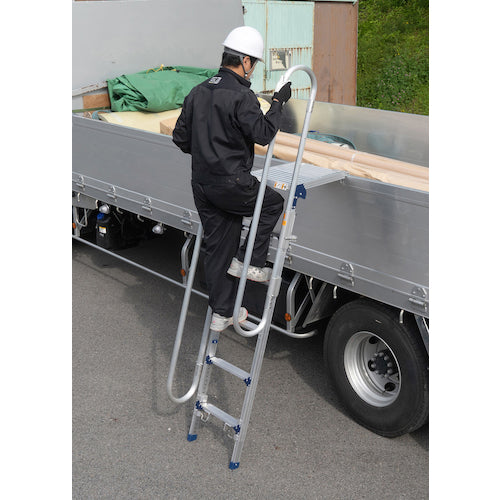

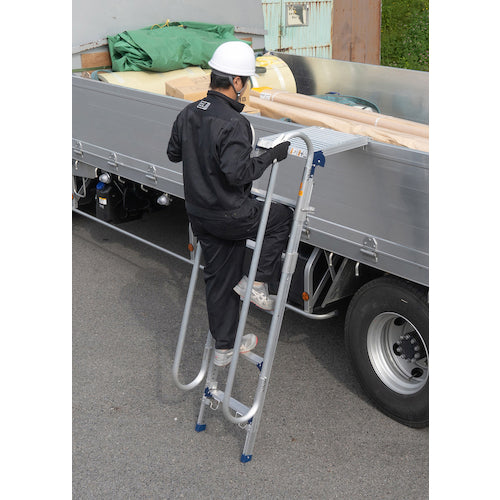

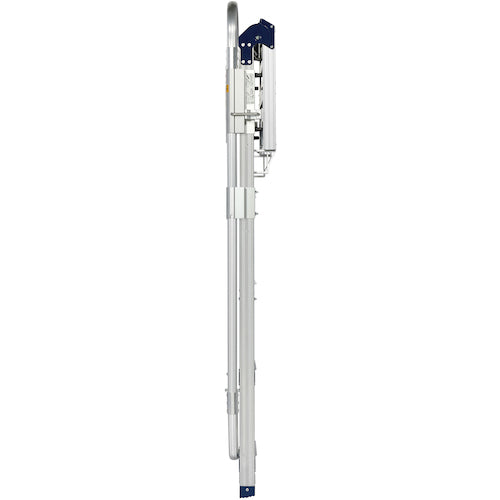

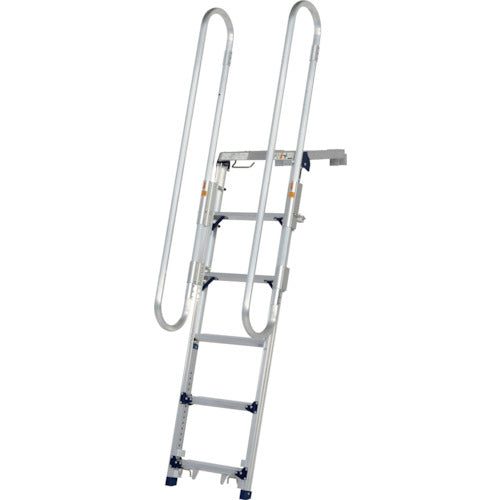

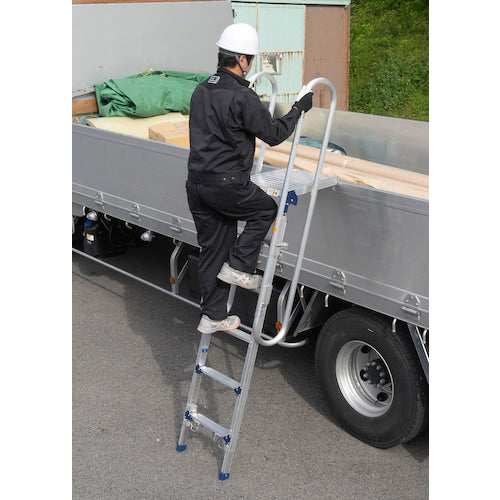

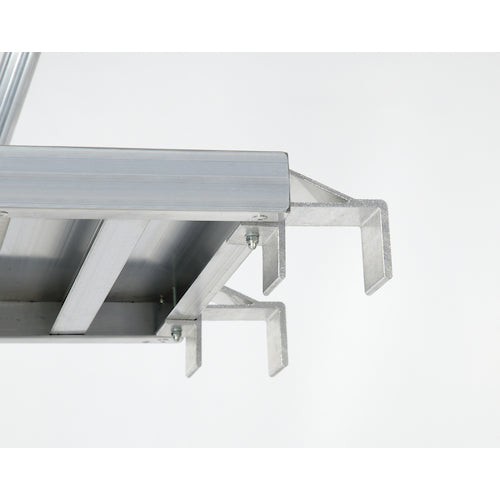

Catalogue number: DXF-18TEA Features: ● Truck climbing step with foldable handrail. ● Attaches to the tailgate of a truck to support climbing up and down to the loading platform. Uses: ● For climbing up and down to the truck loading platform and loading and unloading luggage. Specifications: ● Maximum load capacity (kg): 150 ● Tabletop height (m): 1.47-1.90 ● Tabletop dimensions (mm): 400 x 427 ● Number of steps (steps): 6 ● Installation height (mm): 1442-1872 ● Effective hook width (mm): 63 ● Storage dimensions (mm): Total length 1630 x width 540 x thickness 165 ● Installation dimensions (mm): Climbing surface 435 x depth 859-990 ● Storage dimensions (mm) Total Length x width x thickness: 1630 x 540 x 165 ● Total length (excluding handrails) (mm): 1467-1897 ● Total installed height (including handrails) (mm): 2134-2564 ● Step spacing (mm): 283 ● Foldable ● Step tread width: 55mm ● Step spacing: 283mm ● Leg extension pitch: 25mm ● Maximum leg extension width: 430mm ● Leg extension type ● Hook inner width dimension: 63mm Material/Finish: ● Aluminum alloy Caution: ● Do not use with a maximum load capacity of more than 150kg.
