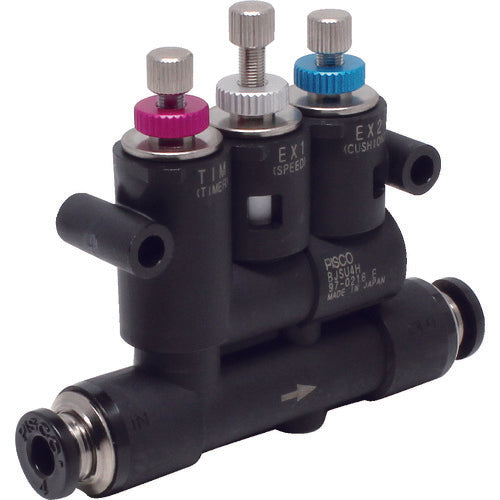

PISCO Cushioned Speed ​​Controller Large Flow Type BJSU4H 1 pc

Catalog number: BJSU4H Features: ● Two-stage adjustment of cylinder speed is realized, enabling control similar to that of a shock absorber. ● Three needles can be used to adjust cylinder speed, cushion strength, and cushion switching timing. ● The large flow rate type ensures a flow rate one size larger with the same tube size as conventional products. Applications: ● Ideal for places where it is difficult to install shock absorbers or when you want to reduce the work of replacing shock absorbers. Specifications: ● Applicable tube outer diameter D (mm): 4 x 4 ● Operating pressure (MPa): 0.2 to 1.0 ● Fluid used: Air ● Operating temperature range: 0 to 60°C (no freezing) ● Operating pressure range: 0.2 to 1.0 MPa ● Meter-out type ● Applicable cylinder tube inner diameter: φ25 mm (when supply pressure: 0.5 MPa, cylinder speed: 500 mm/sec) Materials/Finish: ● Metal parts: Brass + electroless nickel plating ● Plastic parts: Polybutylene terephthalate (PBT) ● Seal rubber: NBR, HNBR
