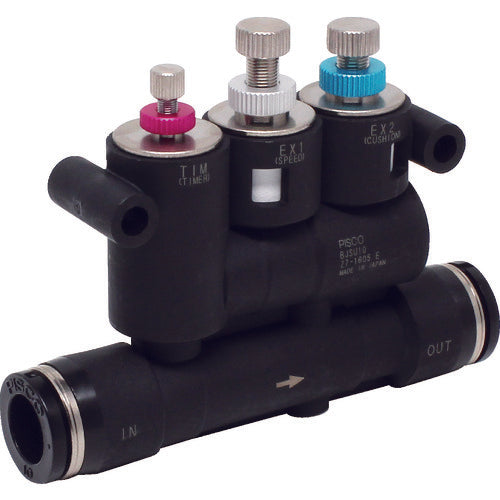

PISCO Cushioned Speed ​​Controller BJSU10 1 piece

Catalog number: BJSU10 Features: ● Two-stage adjustment of cylinder speed is achieved, enabling control similar to that of a shock absorber. ● Cylinder speed, cushion strength, and cushion switching timing can be adjusted with three needles. ● The high flow rate type ensures one size higher flow rate with the same tube size as conventional products. Applications: ● Ideal for places where it is difficult to install shock absorbers or when you want to reduce the work of replacing shock absorbers. Specifications: ● Compatible tube outer diameter D (mm): 10 x 10 ● Operating pressure (MPa): 0.2 to 1.0 ● Operating fluid: air ● Fluid temperature (℃): 0 to 60 (no freezing) ● Operating temperature range: 0 to 60℃ (no freezing) ● Operating pressure range: 0.2 to 1.0MPa ● Meter-out type ● Applicable cylinder tube inner diameter: φ50mm (supply pressure: 0.5MPa, cylinder speed: 500mm/sec) Material/Finish: ● Metal parts: brass + electroless nickel plating ● Plastic parts: polybutylene terephthalate (PBT) ● Sealing rubber: NBR, HNBR
