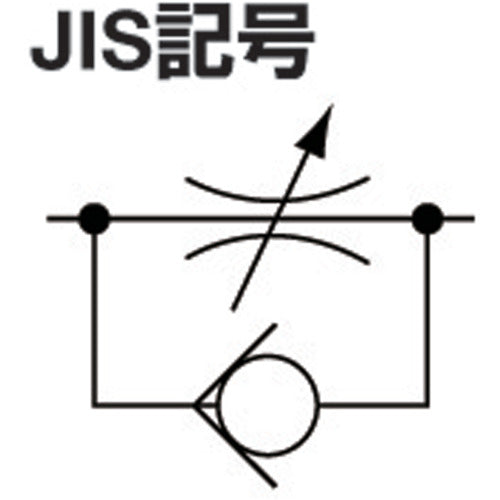

Catalog number: JSC6-02A Features: ●The metal body and resin body rotate, allowing the tube removal angle to be changed. ●Meter-out control (symbol: A) controls the air that enters from the screw side, and the air that enters from the fitting side is released from the screw side without being controlled. Specifications: ●Connection port size: R1/4 ●Applicable tube outer diameter D (mm): 6 ●Operating pressure (MPa): 0.1-0.9 ●Operating fluid: Air ●Fluid temperature (℃): 0-60 (no freezing) ●Operating temperature range: 0-60℃ (no freezing) ●Operating pressure: 0.1-0.9MPa ●Meter-out type ●Check valve operating pressure: 0.05MPa Materials/Finish: ●Metal parts: Brass + electroless nickel plating ●Resin parts: Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR) ●Diaphragm: HNBR
