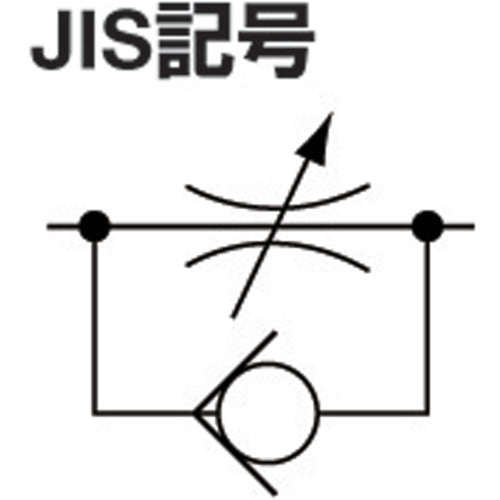

Catalogue number: JSC8-01B Features: ●The metal body and resin body rotate, allowing the tube removal angle to be changed. ●Meter-in control (symbol: B) controls the air that enters from the fitting side, and the air that enters from the thread side is released from the fitting side without being controlled. Specifications: ●Connection diameter: R1/8 ●Applicable tube outer diameter D (mm): 8 ●Operating pressure (MPa): 0.1 to 0.9 ●Operating fluid: Air ●Fluid temperature (℃): 0 to 60 (no freezing) ●Operating temperature range: 0 to 60℃ (no freezing) ●Operating pressure: 0.1 to 0.9MPa ●Meter-in type ●Check valve operating pressure: 0.05MPa Materials/Finish: ●Metal parts: Brass + electroless nickel plating ●Resin parts: Polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR) ●Diaphragm: HNBR
