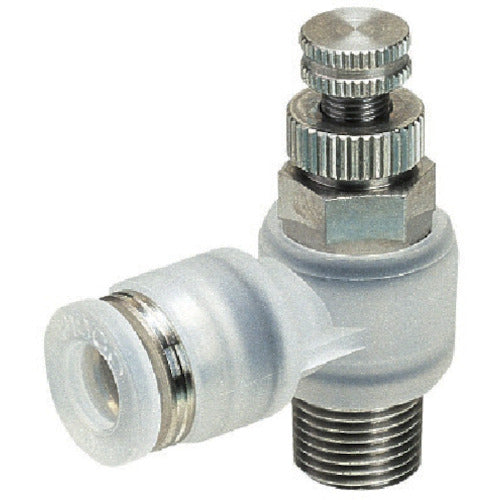

PISCO Throttle Valve PP Elbow Tube 4 Thread R1/8 PJNC401 1 pc

Catalog number: PJNC401 Features: ●The resin body is made of PP resin, which is suitable for clean environments. ●The metal material is SUS304. ●The seal material is EPDM. ●Oil-free specifications. ●The resin body is clear (semi-transparent) so that the fluid (liquid) can be checked. Specifications: ●Applicable tube outer diameter D (mm): 4 ●Connection port size: R1/8 ●Fluid used: air, water, other chemicals (conditions apply) ●Operating temperature range: 0°C to 80°C (no freezing) ●Operating pressure range: 0 to 1.0MPa (20°C) ●Operating vacuum pressure: -100kPa Materials/Finish: ●Metal parts: SUS304 ●Resin parts: PP ●Seal rubber: EPDM Caution: ●For chemicals, solvents, mixed gases, etc., our specifications may differ depending on the conditions of use, so please contact us. ●The resin may deteriorate due to direct sunlight or ultraviolet rays. ●Since it is oil-free specifications, the tube will be tighter than the standard type. When using, make sure the tube is inserted all the way to the end. When installing, applying a safe liquid to the tube will improve installation. For maximum operating pressure when the operating temperature exceeds 20°C, refer to the "Relationship diagram between operating temperature and maximum operating pressure" in our catalog or on our website.
