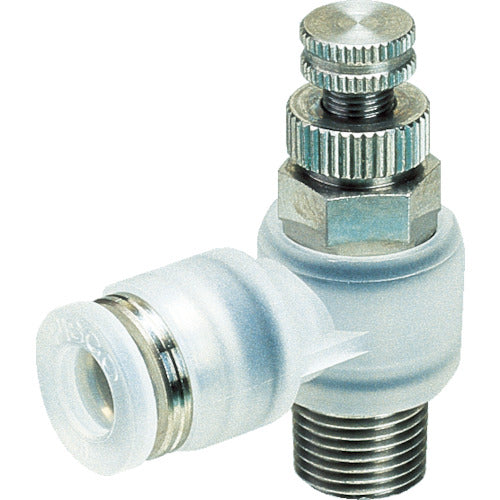

PISCO Throttle Valve Elbow PP Type PJNC10-02 1 pc

Catalog number: PJNC10-02 Features: ●The main body is made of PP, which is suitable for clean environments. ●The resin body is clear (semi-transparent), allowing you to check the fluid (liquid). ●The metal material is SUS304. ●The seal material is EPDM. ●Oil-free specifications. Specifications: ●Applicable tube outer diameter D (mm): 10 ●Connection port size: R1/4 ●Operating temperature (℃): 0 to 80 (no freezing) ●Operating fluid: air, water (conditions apply), others ●Operating pressure (MPa): -0.1 to 1 ●Operating temperature range: 0 to 80℃ (no freezing) ●Operating pressure: 1.0MPa (at 0 to 20℃) ●Operating vacuum pressure: -100kPa Materials/Finish: ●Metal parts: Stainless steel (SUS304) ●Resin parts: Polypropylene (PP) ●Seal rubber: Ethylene propylene rubber (EPDM)
