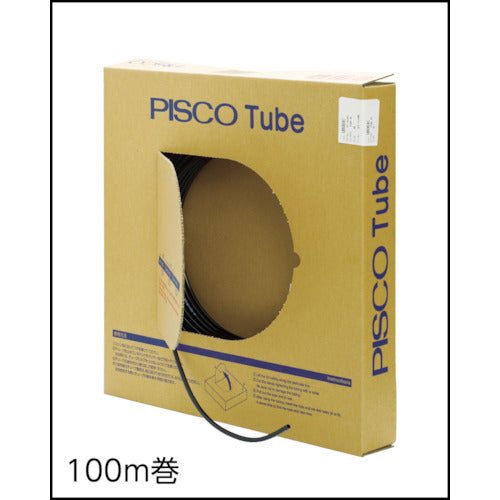

PISCO Soft Nylon Tube Red 10 x 7.5 20M NB1075-20-R 1 Roll

Catalog number: NB1075-20-R Features: ●Excellent pressure resistance, abrasion resistance, and cold resistance. ●Can also be used with hot water and heat transfer oil. ●Cut marks are provided at approximately 500 mm intervals for easy cutting of the tube. Specifications: ●Color: Red ●Outer diameter (mm): 10 ●Inner diameter (mm): 7.5 ●Minimum bending radius (mm): 28 ●Total length (m): 20 ●Maximum operating pressure (MPa): 1.3 (20℃ 65% RH) ●Operating temperature range (℃): For air: -20 to 100 (no freezing) / For water, heat transfer oil: -15 to 90 (no freezing) ●Operating fluid: Air, water (conditions apply), heat transfer oil (conditions apply) ●Maximum operating pressure: 1.3MPa (at 20℃ 65% RH) ●Operating vacuum pressure: -100kPa ●Operating temperature range: -15 to 90℃ (water, heat transfer oil, no freezing), -20 to 100℃ (air, no freezing) Material/Finish: ●Nylon (PA12) Caution: ●Do not apply loads such as tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come loose. ●Do not scratch the tube by rubbing or tangling it. This may cause the tube to burst. ●The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin. ●Use the tube with a minimum bending radius or greater. ●When piping the tube, allow for sufficient margin to take into account changes in length, etc.
