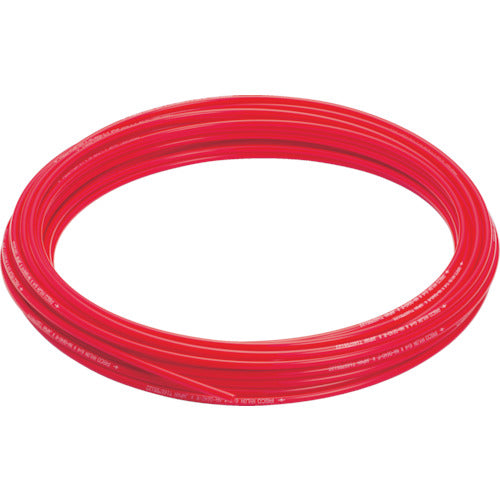

PISCO Soft Nylon Tube Red 6 x 4 20m NB0640-20-R 1 Roll

Catalog number: NB0640-20-R Features: ●Excellent pressure resistance, abrasion resistance, and cold resistance. ●Can also be used with hot water and heat transfer oil. ●Cut marks are provided at approximately 500 mm intervals for easy cutting of the tube. Specifications: Color: Red; Outer diameter (mm): 6; Inner diameter (mm): 4.0; Minimum bending radius (mm): 14; Total length (m): 20; Maximum operating pressure (MPa): 1.3 (20°C 65% RH); Operating temperature range (°C): Air: -20 to 100 (no freezing); Water, heat transfer oil: -15 to 90 (no freezing); Fluids used: Air, water (conditions apply), heat transfer oil (conditions apply); Maximum operating pressure: 1.3MPa (at 20°C 65% RH); Vacuum pressure used: -100kPa; Operating temperature range: -15 to 90°C (water, heat transfer oil, no freezing), -20 to 100°C (air, no freezing); Material/Finish: Nylon (PA12); Caution: Do not apply tension, twisting, or extreme bending to the tube. This may cause the tube to collapse, burst, or come loose. ● Take care not to scratch the tube by rubbing or tangling it. This may cause the tube to burst. ● The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin. ● Use the tube with a minimum bending radius or greater. ● When piping the tube, allow sufficient margin to take into account changes in length, etc.
