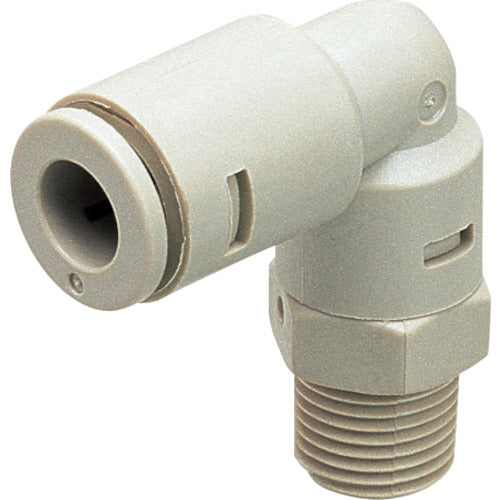

PISCO Tube Fitting Chemical Elbow Tube 6MM Thread R1/8 APL6-01 1 pc

Catalog number: APL6-01 Features: ●The main body material is PPS, which has excellent heat resistance, flame retardancy (UL94 V-0 equivalent), and chemical resistance. ●FKM is used for the seal. ●All parts used are oil-free. ●No need to worry about rust or metal ions. Specifications: ●Applicable tube outer diameter D (mm): 6 ●Connection port size: R1/8 ●Hexagonal face size (mm): 12 ●Maximum operating pressure (MPa): 0.9 ●Usable fluid: air, water (conditions apply), other (conditions apply) ●Hexagonal face size (mm) main body: 12 ●Usable temperature range: 0 to 80°C (no freezing) ●Maximum operating pressure: 0.9MPa (at 0 to 20°C) ●Usable vacuum pressure: -100kPa Material/Finish: ●Resin main body: PPS ●Seal rubber: FKM
