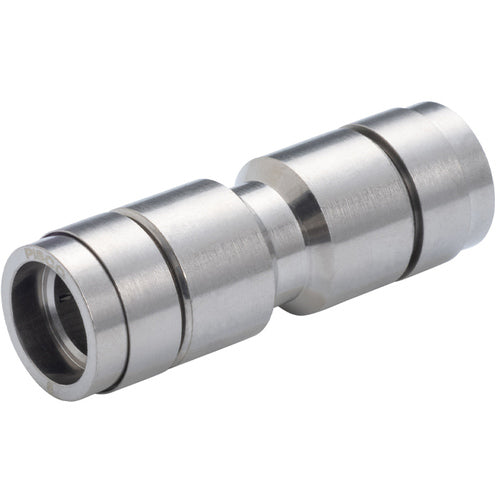

PISCO Tube Fitting Brass Union Straight with Cover KU6 1 pc

Catalog number: KU6 Features: ●The release ring is made of brass in addition to the main body, so it has excellent flame retardancy and spatter resistance. ●The covered type prevents spatter, dust, etc. from entering the inside of the fitting. Specifications: ●Applicable tube outer diameter D (mm): 6 x 6 ●Fluid temperature (℃): 0 to 100 (no freezing) ●Fluid used: air, water (conditions apply), heat transfer oil (conditions apply) ●Usage temperature range: 0 to 100℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Vacuum pressure used: -100kPa Material/Finish: ●Main body: Brass + electroless nickel plating ●Seal rubber: Hydrogenated nitrile rubber (HNBR) Caution: ●If the fluid used is heat transfer oil, the heat transfer oil may adhere to the release ring and guide ring and solidify, causing sliding problems and hindering the release or lock function. When using, make sure that there is no heat transfer oil on the release ring or guide ring. When reconnecting the tube, be sure to check carefully that the tube will not come loose before using it again.
