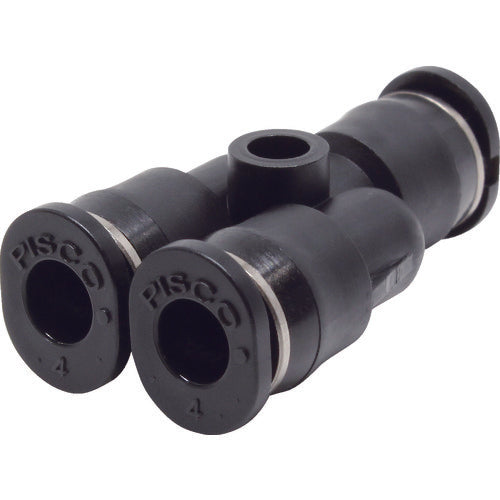

PISCO Tube Fitting Mini Type Union Y PY4M 1 pc

Catalog number: PY4M Features: ●This one-touch fitting has been successfully downsized by 40% in volume compared to the standard type. ●The release ring is oval shaped, making it easy to attach and detach the tube despite its ultra-compact size. Specifications: ●Applicable tube outer diameter D (mm): 4 x 4 x 4 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
