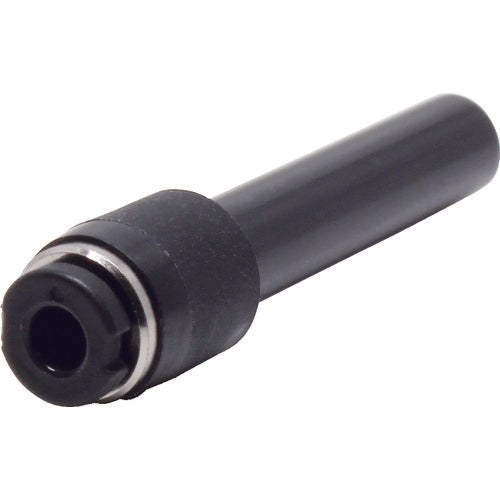

PISCO Tube Fitting Mini Reducer Tube 2 Fitting 4 PGJ4-2M 1 pc

Catalog number: PGJ4-2M Features: ●One-touch fitting that has been successfully downsized by 40% in volume compared to the standard type. ●By making the release ring elliptical, it is easy to attach and remove the tube despite its ultra-compact size. Specifications: ●Applicable tube outer diameter D1 (mm): 2 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: Air ●Applicable fitting size D2 (mm): 4 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1.0MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
