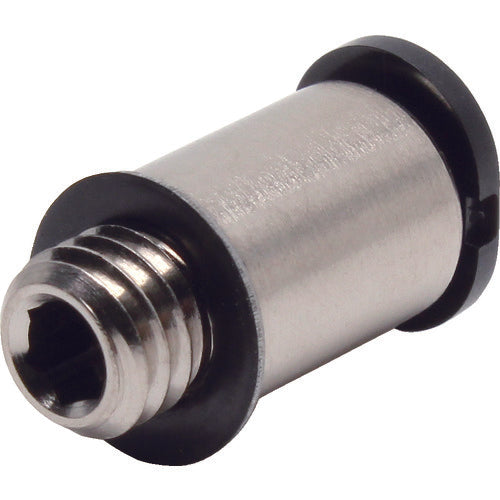

PISCO Tube Fitting Mini Hexagonal Socket Straight Tube 4 Connection Diameter M6 x 1 POC4-M6M 1 pc

Catalog number: POC4-M6M Features: ● A one-touch fitting that has been successfully downsized by 40% in volume compared to the standard type. ● The release ring is oval shaped, making it easy to attach and detach the tube despite its ultra-compact size. Specifications: ● Applicable tube outer diameter D (mm): 4 ● Connection port size: M6 x 1 ● Hexagonal face size (mm): 3 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 0 to 60 (no freezing) ● Fluid used: Air ● Operating temperature range: 0 to 60℃ (no freezing) ● Maximum operating pressure: 1MPa ● Vacuum pressure used: -100kPa Material/Finish: ● Body: Brass + electroless nickel plating (Metal body for M3 thread: Free-cutting steel + electroless nickel plating or special stainless steel) ● Sealing rubber: Nitrile rubber (NBR)
