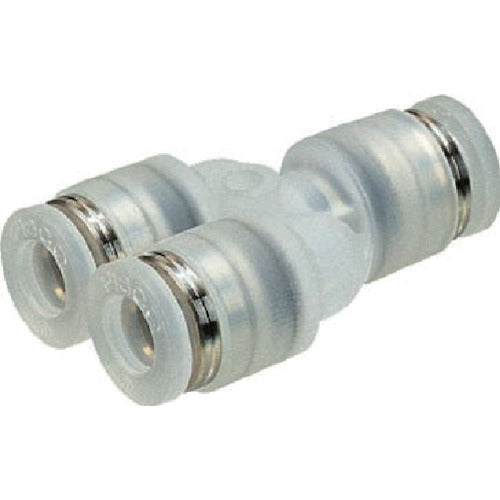

PISCO Tube Fitting PP Union Y PPY4 1 pc

Catalog number: PPY4 Features: ●The main body is made of PP, which is suitable for clean environments. ●The metal parts are made of SUS304. ●Oil-free specifications. ●The resin body is clear, allowing you to check the fluid. Specifications: ●Applicable tube outer diameter D (mm): 4 x 4 x 4 ●Fluids used: air, water (conditions apply), other chemicals (conditions apply) ●Maximum operating pressure: 1.0 MPa (0 to 20°C) ●Vacuum pressure used: -100 kPa ●Operating temperature range: 0 to 80°C (no freezing) Material/Finish: ●Main body: PP ●Metal parts: SUS304 ●Seal rubber: EPDM Caution: ●For chemicals, solvents, mixed gases, etc., our specifications may differ depending on the conditions of use, so please contact us. ●The resin may deteriorate due to direct sunlight or ultraviolet rays. ●Since this is an oil-free specification, the tube is tighter to install than the standard type. When using, make sure that the tube is inserted all the way to the tube end. When installing, applying a safe liquid to the tube will improve the ease of installation. For maximum operating pressure when the operating temperature exceeds 20°C, refer to the "Relationship diagram between operating temperature and maximum operating pressure" in our catalog or on our website.
