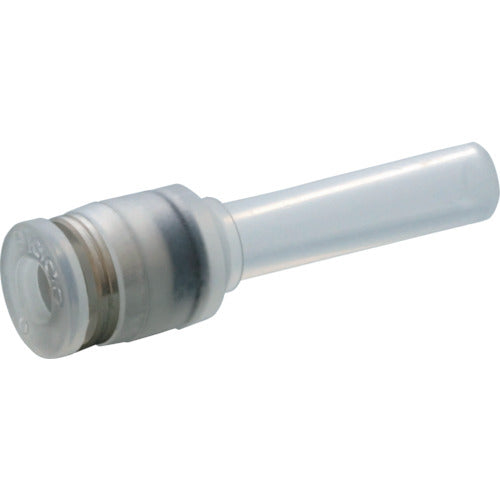

PISCO Tube Fitting PP Reducer PPGJ10-6 1 pc

Catalog number: PPGJ10-6 Features: ●The main body is made of PP, which is suitable for clean environments. ●The metal parts are made of SUS304. ●Oil-free specifications. ●The resin body is clear, allowing you to check the fluid. Specifications: ●Applicable tube outer diameter D1 (mm): 6 ●Operating pressure: 1.0 MPa (0 to 20°C) ●Operating fluid: air, water, other chemicals ●Applicable fitting size D2 (mm): 10 ●Applicable fitting diameter D1 (mm): 10 ●Operating temperature range: 0 to 80°C (no freezing) Material/Finish: ●Resin body: PP ●Metal parts: SUS304 ●Seal rubber: EPDM
