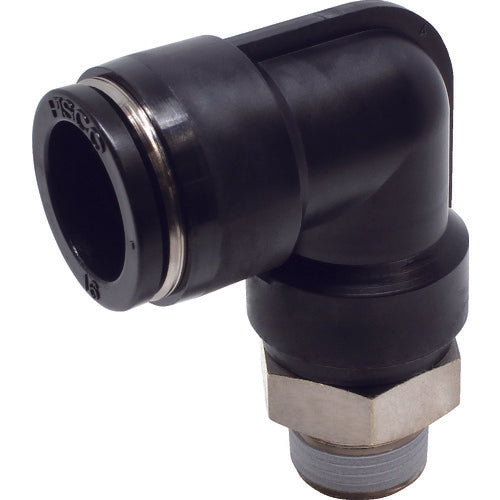

PISCO Tube Fitting Elbow Fitting Outer Diameter 16mm Connection Diameter R3/8 PL16-03 1 pc

Catalog number: PL16-03 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Applicable tube outer diameter D (mm): 16 ●Connection port size: R3/8 ●Hexagonal face size (mm): 22 ●Usable fluid: air, water (conditions apply) ●Usable temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1MPa ●Usable vacuum pressure: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
