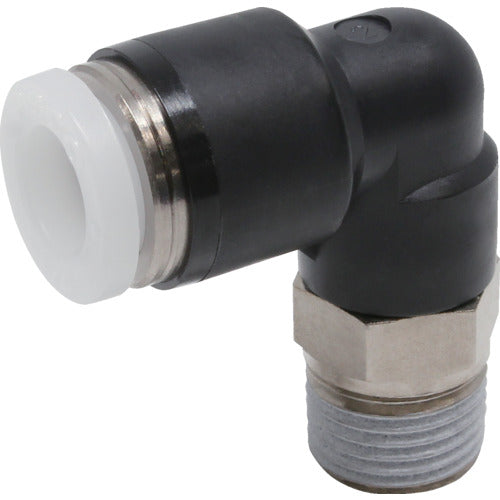

PISCO Tube Fitting Elbow Fitting Outer Diameter 1/4 Inch Connection Diameter R1/8 PL1/4-01 1 Piece

Catalog number: PL1/4-01 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Connection diameter: R1/8 ●Hexagonal face size (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating fluid: air, water (conditions apply) ●Compatible tube outer diameter (inch): 1/4 ●Operating vacuum pressure (kPa): -100 ●Operating temperature range: 0 to 60°C (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Materials/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
