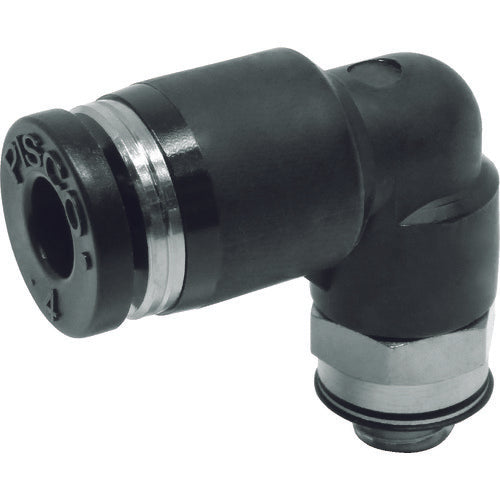

PISCO Tube Fitting Elbow Fitting Outer Diameter 4mm Connection Port Size M5 x 0.8 PL4-M5 1 pc

Catalog number: PL4-M5 Features: ●After installation, the tube outlet angle can be changed depending on the model. ●Water can also be passed through depending on the conditions. ●A wide range of models are available to accommodate all types of pneumatic piping. Specifications: ●Applicable tube outer diameter D (mm): 4 ●Connection port size: M5 x 0.8 ●Hexagonal face size (mm): 8 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 60 (no freezing) ●Operating fluid: air, water (conditions apply) ●Fluid temperature (℃): 0 to 60 ●Operating temperature range: 0 to 60℃ (no freezing) ●Maximum operating pressure: 1MPa ●Operating vacuum pressure: -100kPa Material/Finish: ●Body: Brass + electroless nickel plating + polybutylene terephthalate (PBT) ●Seal rubber: Nitrile rubber (NBR)
